Customer pain: Regulatory compliance for airborne dust.
Requirement: Fine droplets (10-50μm) for particle agglomeration.
Industrial Dust Suppression Spray Nozzles
Effective dust control solutions for mining, cement, steel mills, and material handling. Fine mist, dry fog, and full cone nozzles for particle capture and air quality compliance.
Common Dust Suppression Challenges & CYCO Solutions
Fine Particulate (PM2.5/PM10) Control
High Water Usage in Dust Control
Customer pain: Excessive water consumption and wetting.
Requirement: Efficient mist generation, minimal runoff.
Clogging from Dust-Laden Water
Customer pain: Nozzle blockage causing system failure.
Requirement: Clog-resistant design, large passages.
Coal · Mining · Power

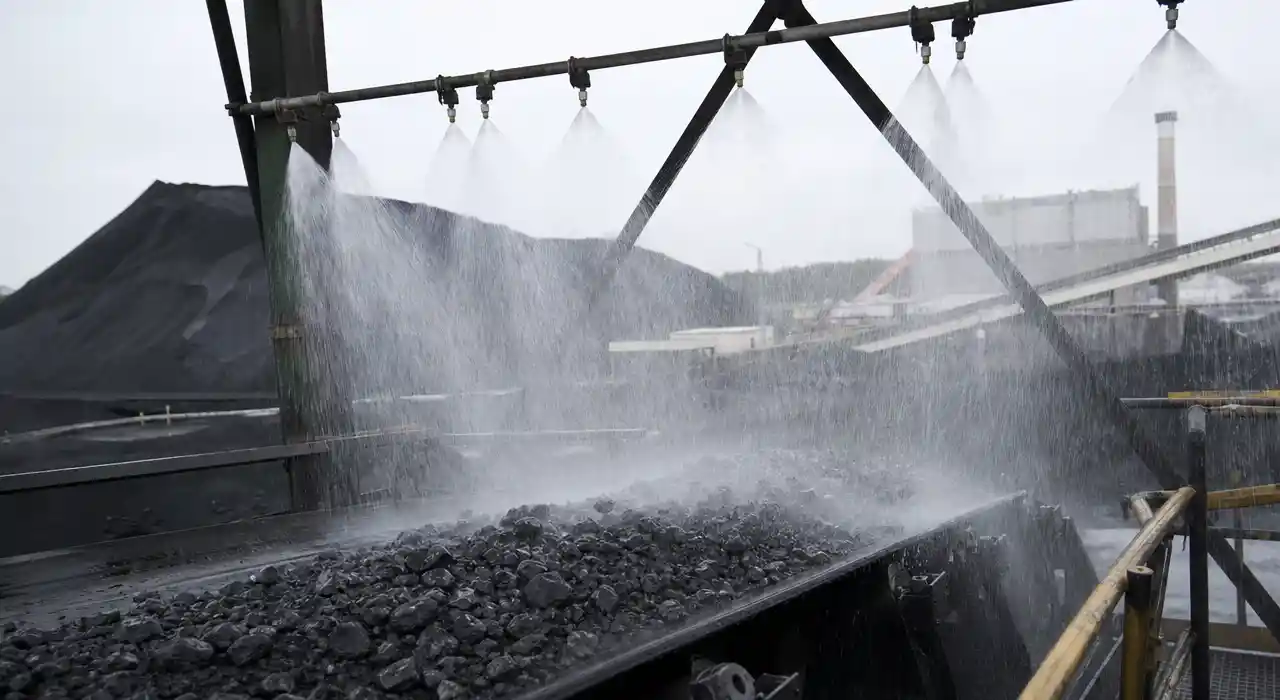

Coal Dust Suppression
Control of fugitive dust from coal handling, storage piles, conveyors, and transfer points. Effective dust suppression reduces explosion risk and improves worker safety.
Associated Industries: Mining ·
Suppression Challenges:
- Dust generated at multiple transfer points along conveyors
- High air movement in open stockpile areas
- Need for minimal moisture to maintain coal calorific value
Recommended Products:
BG-W Wide Angle Full Cone (88) – 110°–120°, 7370 L/min
SPJT Spiral Nozzle (79) – 60°–170°, 5.5–4140 L/min
AD Hollow Cone (121) – 50°–90°, 145 L/min
💡 Engineering Tip: For coal conveyors, install BG-W (88) at each transfer point with automatic triggers. For stockpile dust, use SPJT (79) with wide angle coverage and low water pressure (2-4 bar) to avoid excessive wetting.
Cement · Construction

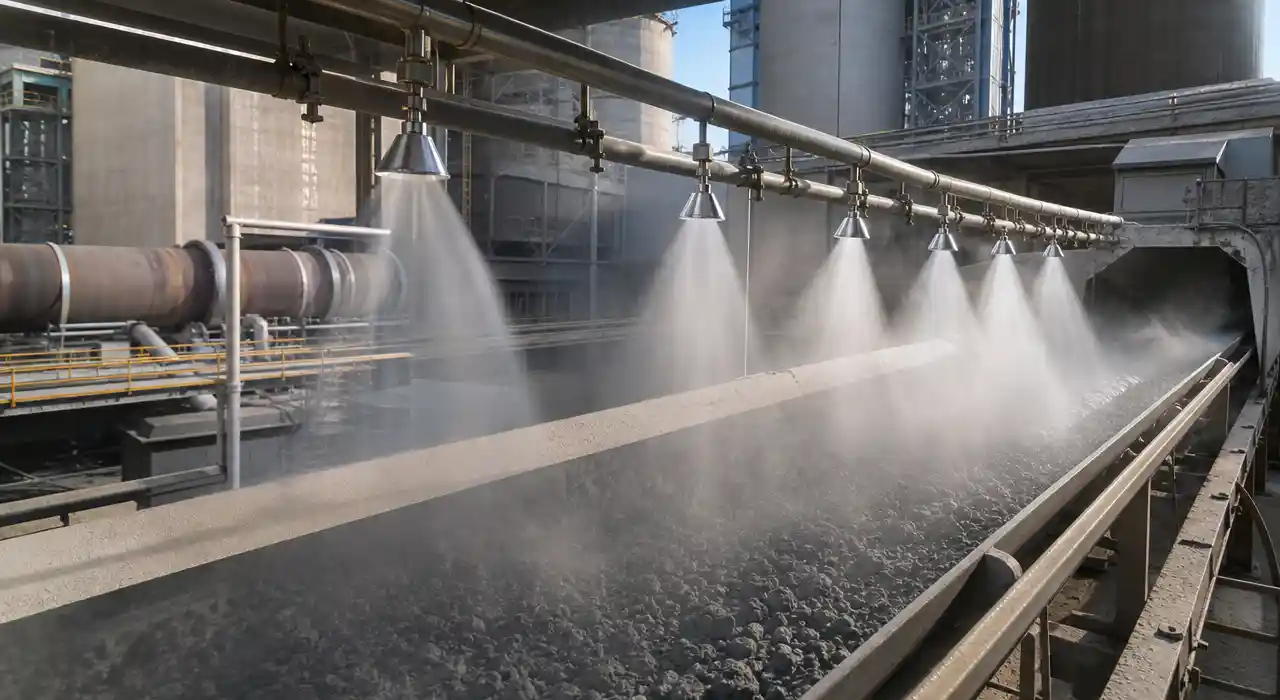

Cement Plant Dust Control
Dust suppression at crushers, mills, kilns, clinker coolers, and bagging plants. Cement dust is fine and can be highly abrasive, requiring durable nozzle solutions.
Associated Industries: Cement & Mining
Suppression Challenges:
- Extremely fine dust particles that resist capture
- Abrasive dust causing rapid nozzle wear
- High temperatures in kiln and clinker areas
Recommended Products:
BB Standard Full Cone (89) – 43°–106°, Brass/SS
14WSQ Square Full Cone (92) – 93°–115°, uniform spray
AF Hollow Cone (127) – 120°–180°, SS/NPT
💡 Engineering Tip: For cement bagging plants, use BB Standard Full Cone (89) with 316SS for corrosion resistance. For high‑temperature areas near the kiln, consider ceramic‑tipped nozzles for extended service life.
Mining · Quarry

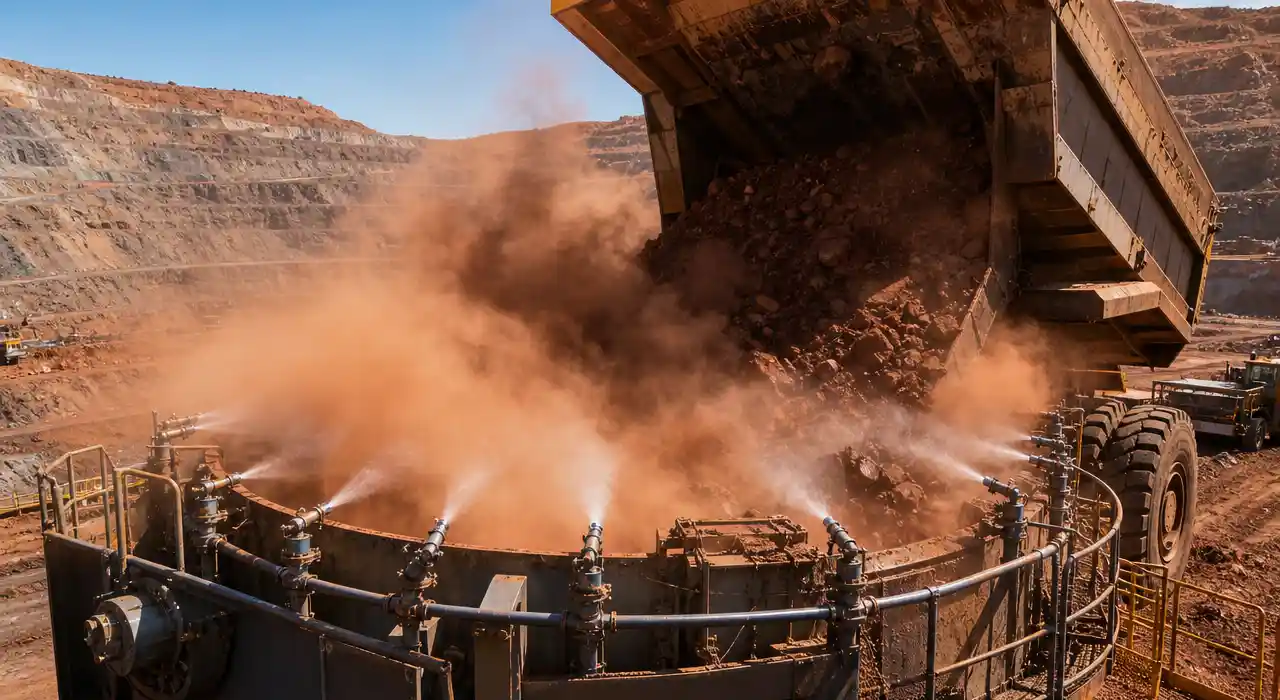

Mining Dust Suppression
Control of dust from drilling, blasting, crushing, screening, and conveying operations. Effective suppression improves operator visibility and reduces health risks.
Associated Industries: Cement & Mining
Suppression Challenges:
- High dust generation from primary crushing and screening
- Remote locations with limited water supply
- Dust varying in particle size from coarse to fine
Recommended Products:
SPJT Spiral Nozzle (79) – 60°–170°, Stainless Steel
BG-W Wide Angle Full Cone (88) – 110°–120°, 7370 L/min

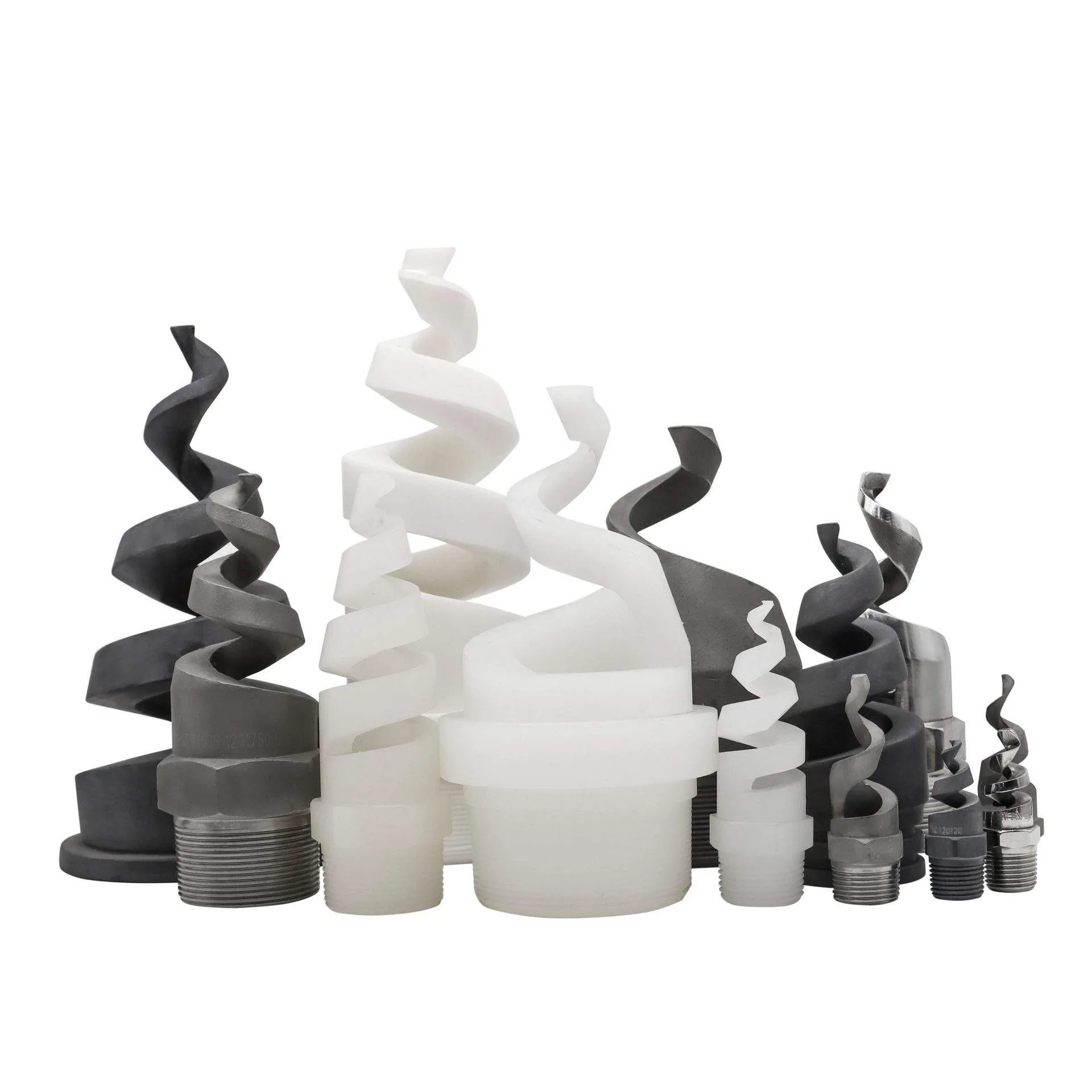

SPJT-SS-120 Spiral (98) – 120°, 5.5–4140 L/min
💡 Engineering Tip: For primary crushers, use SPJT (79) with high‑pressure water (5‑8 bar). For conveyor transfer points, use BG-W (88) with a 110° spray angle for full coverage across the belt width.
Steel · Metallurgy

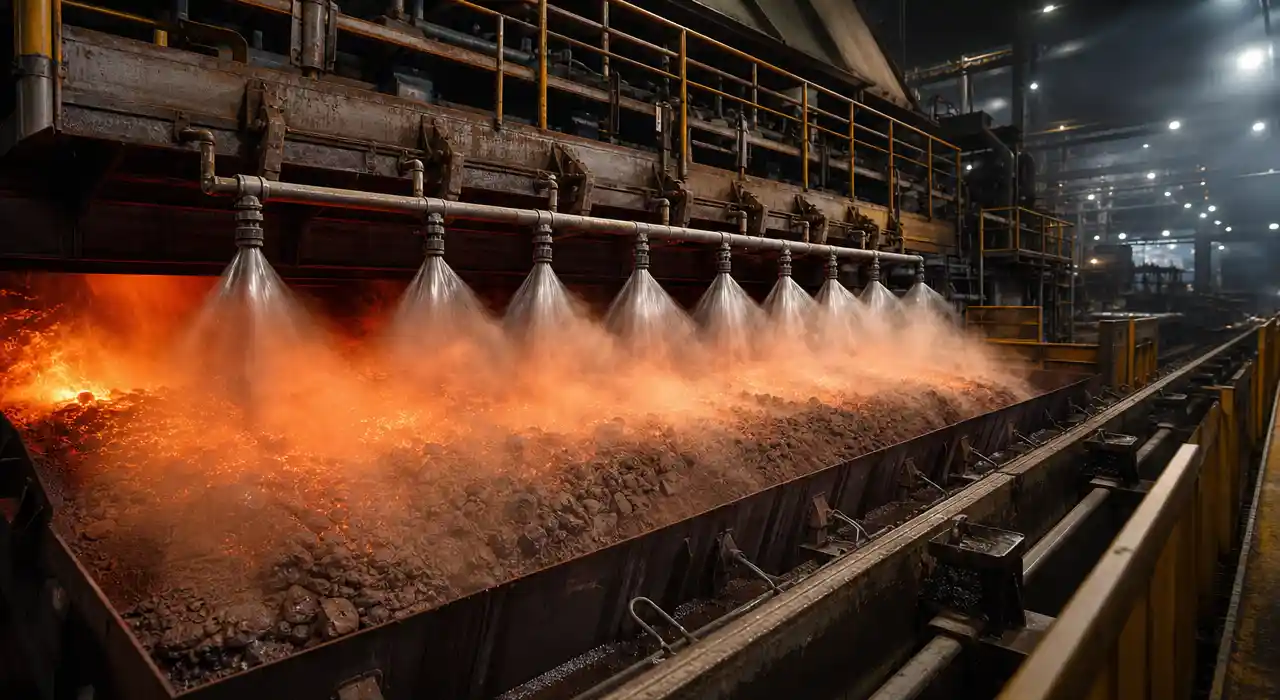

Steel Mill Dust Control
Dust suppression at sinter plants, blast furnaces, BOF, and material handling areas. Steel mill dust often contains iron oxides and is highly abrasive.
Associated Industries: Steel & Metallurgy
Suppression Challenges:
- High temperature dust from furnace operations
- Abrasive iron oxide particles causing nozzle wear
- Large open areas requiring high‑pressure spray systems
Recommended Products:
AA/A Hollow Cone (123) – 51°–114°, Brass/SS

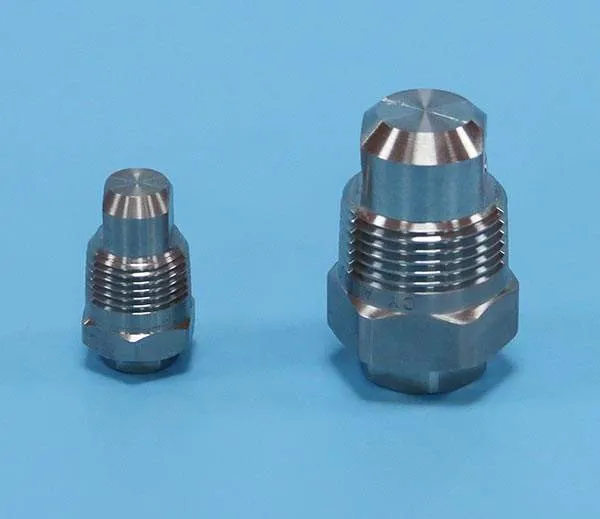

AD Axial Hollow Cone (128) – 50°–90°, Stainless Steel
SPJT Spiral Nozzle (79) – 60°–170°, 5.5–4140 L/min
💡 Engineering Tip: For sinter plant dust, use AA/A (123) with 316L construction. For high‑temperature areas like BOF, use water mist systems with AD Axial (128) for efficient cooling and dust capture.
Wood · Biomass

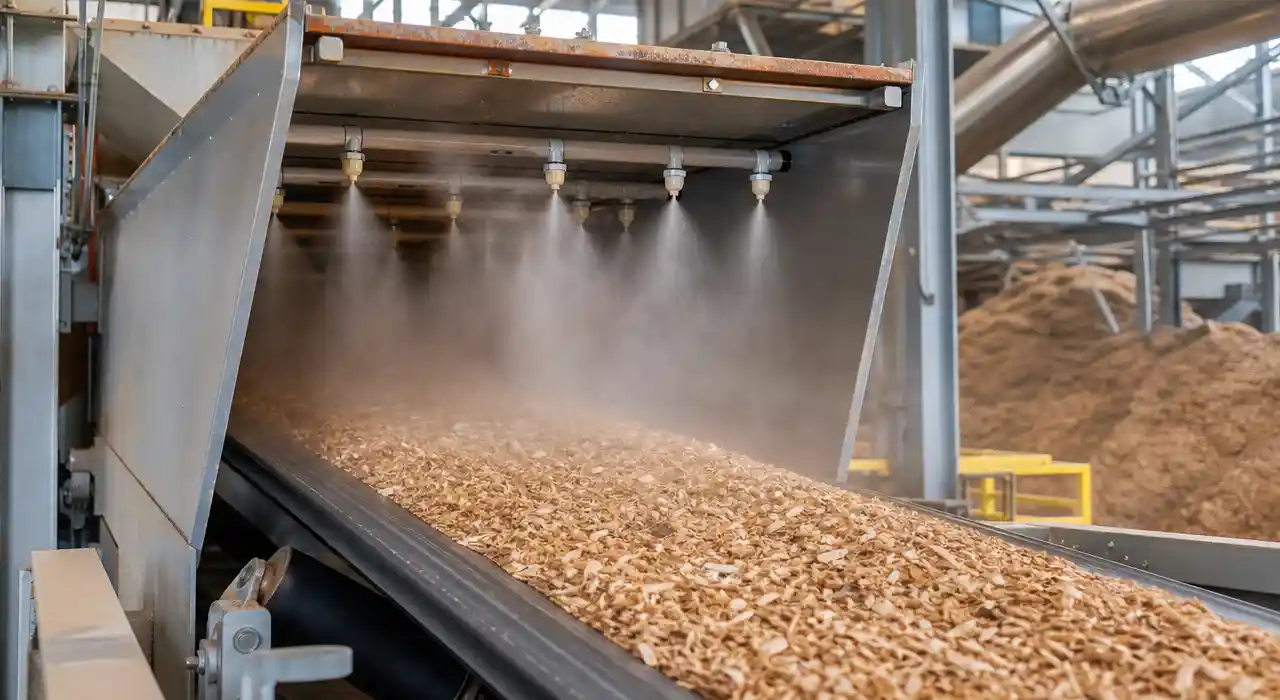

Wood Chip Dust Control
Dust suppression at wood processing, biomass handling, and sawmill operations. Wood dust is combustible and requires effective control for fire safety.
Suppression Challenges:
- Fine wood dust that is both combustible and respiratory hazard
- Water absorption causing material degradation
- Dust generated from grinding, chipping, and conveying
Recommended Products:
SPJT Spiral Nozzle (79) – 60°–170°, 5.5–4140 L/min
BB Standard Full Cone (89) – 43°–106°, Brass/SS
CYC-001 Plastic Misting (95) – 20-40μm, anti-clog
💡 Engineering Tip: For wood handling, use fine mist from CYC-001 (95) to capture dust without over‑wetting the material. For high‑volume transfer points, SPJT (79) provides effective suppression with minimal moisture.
Waste · Recycling

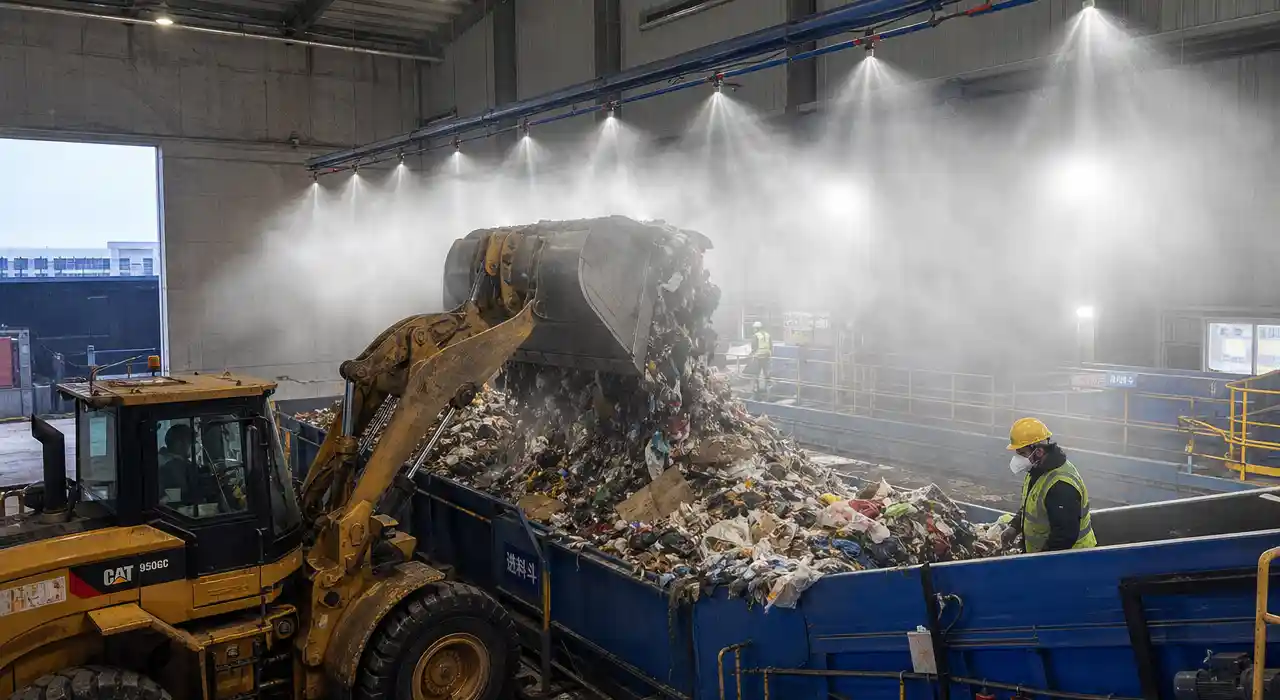

Garbage Handling Dust Control
Dust and odor control at waste transfer stations, landfills, and recycling facilities. Combined systems address both airborne dust and malodors.
- Dust mixed with organic matter causing odors
- Corrosive gases requiring resistant materials
- Need to avoid leachate contamination
Recommended Products:

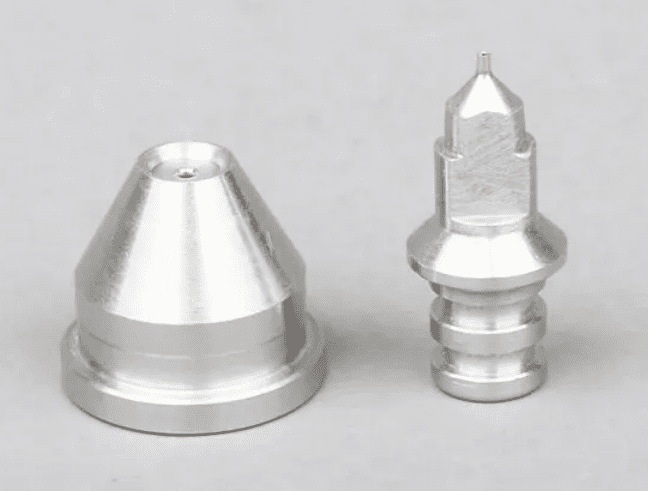

ADG Ultrasonic Atomizing (94) – 1-10μm, 316SS
CYC-001 Plastic Misting (95) – 20-40μm, anti-clog

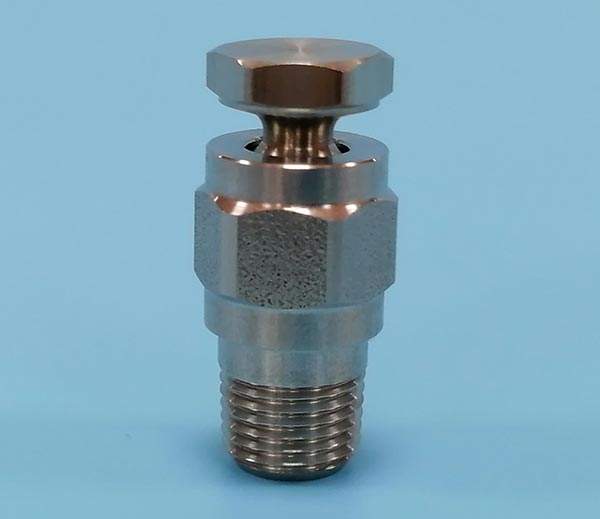

AF Hollow Cone (127) – 120°–180°, SS/NPT
💡 Engineering Tip: For odor control, combine ADG (94) with chemical injection. For transfer station dust, CYC-001 (95) provides fine mist without overspray. Use 316SS for corrosive environments.
Industrial · Environmental

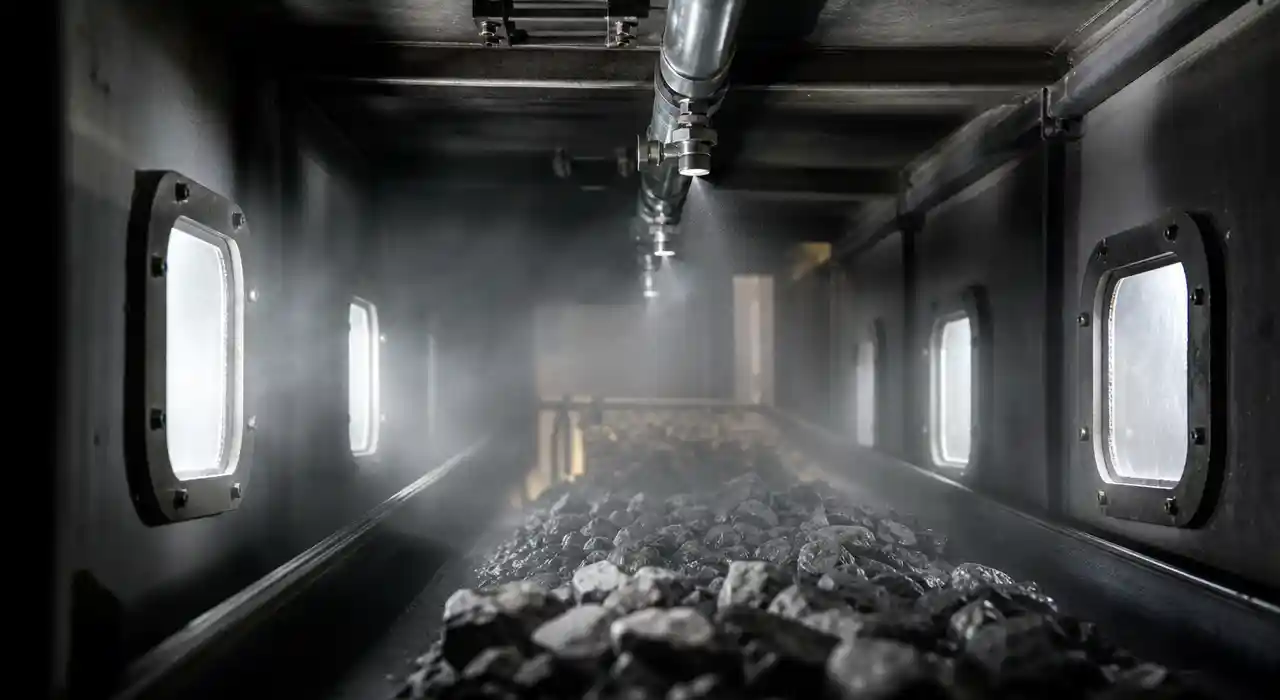

Dry Fog Dust Suppression
Ultra-fine fog (1-10μm) for dust suppression without wetting materials – ideal for confined spaces, sensitive processes, and locations where material moisture must be controlled.
Associated Industries: Mining
Suppression Challenges:
- Maintaining material quality while suppressing dust
- Operating in confined spaces with limited air flow
- Achieving high capture efficiency with minimal water
Recommended Products:
💡 Engineering Tip: For dry fog applications, use ADG (94) or AE Series (157) which produce fog without wetting surfaces. Ideal for confined spaces like transfer chutes and crusher housings. Ensure water quality is <50μm to prevent clogging.
Select Your Industry for Tailored Recommendations
Explore dust suppression nozzle solutions specific to your sector
Frequently Asked Questions
What is the ideal droplet size for dust suppression?
For respirable dust (PM10), droplets of 10-50μm are most effective. Ultrasonic nozzles (1-10μm) are best for dry fog applications.
How does dry fog differ from conventional misting?
Dry fog produces ultra-fine droplets (1-10μm) that capture dust without wetting materials. Conventional misting uses larger droplets that can cause material wetting.
What droplet size is most effective for coal dust?
For coal dust (10–100μm), droplets of 50–200μm are optimal. Larger droplets capture coarse particles, while fine mist (10–50μm) captures respirable dust.
Can dry fog nozzles be used outdoors?
Yes, but wind can affect dispersion. For outdoor use, install wind shields or use higher pressure to increase droplet velocity.
How do I prevent nozzle freezing in winter?
Use heated enclosures, trace heating, or air‑assisted nozzles that purge water after use. Alternatively, use dry fog systems that use minimal water.
What is the typical water pressure for dust suppression?
For full cone nozzles, 2–7 bar. For air atomizing, 0.7–4 bar liquid plus 2–6 bar air. Ultrasonic nozzles operate at low pressure (<3 bar).
