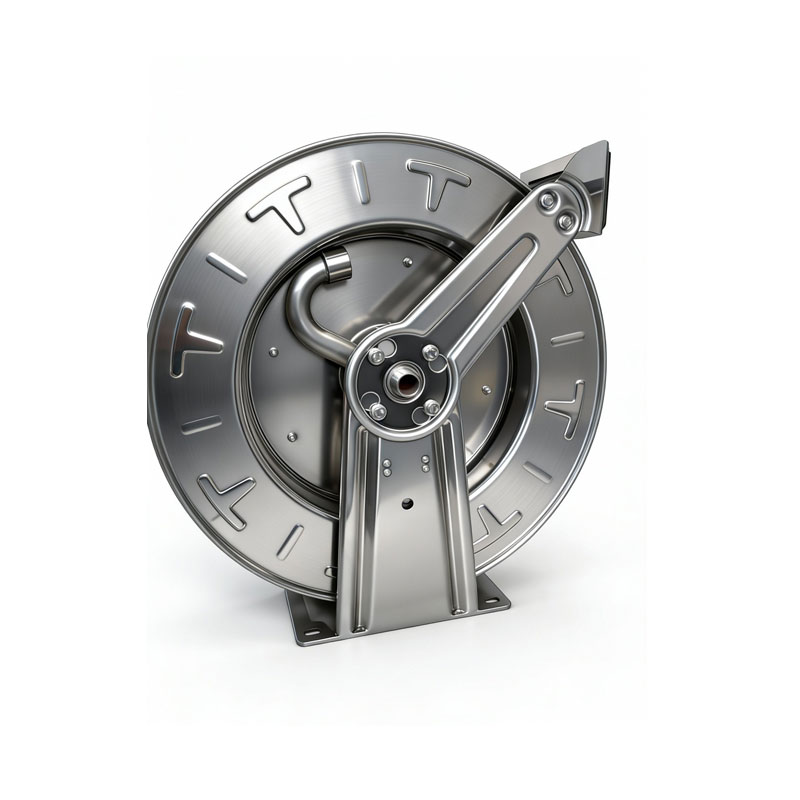

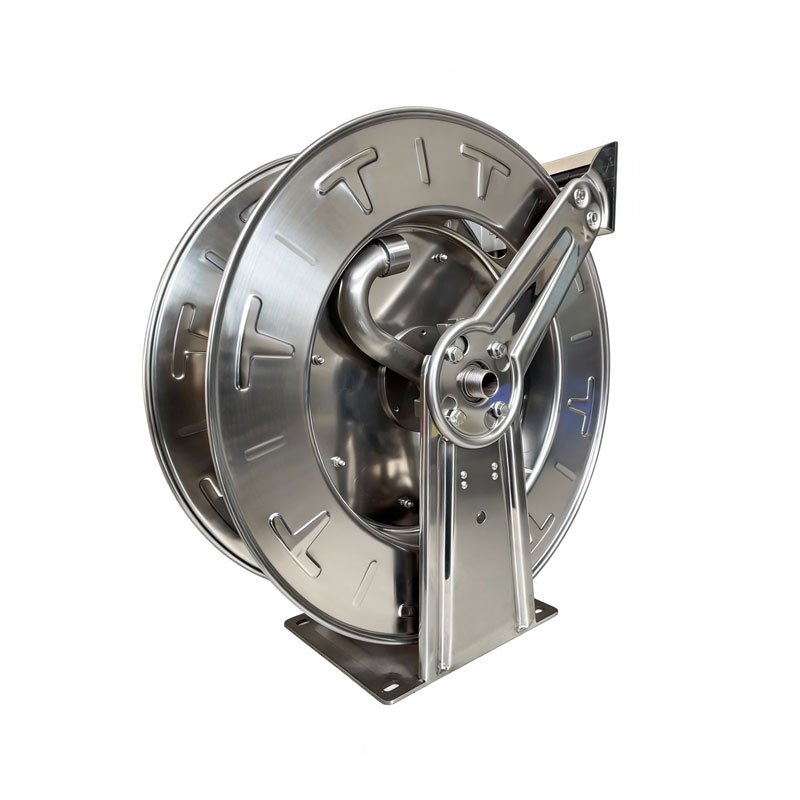

Stainless Steel Spring Driven Hose Reel CY-DS84
SKU: CY-DS84
Categories: Air Hose Reels | Hose Reels | Hydraulic Hose Reels | Oil Hose Reels | Spring-Driven Hose Reels
Overview
The CY-DS84 is a professional-grade spring-driven hose reel engineered for reliable hose storage and automatic retraction across industrial environments. Constructed from corrosion-resistant 304 stainless steel with electrochemical surface treatment, this reel delivers durability in workshops, factories, service centers, and construction sites while maintaining a clean, organized workspace.
Key Features
- Corrosion and Dirt Resistance – Manufactured from 304 stainless steel stampings with electrochemical surface treatment for extended service life in harsh environments
- Enclosed Drive Spring – Protected drive mechanism prevents environmental contamination and damage
- Long Life Drive Springs – Clutch-type reel spool design virtually eliminates spring damage from reverse spool winding
- Adjustable Cushion Stop – Lock hose at any desired length for precise control and safety
- Adjustable Guide Arms – Multiple positioning options for flexible wall, ceiling, or floor installation
- Smooth Automatic Retraction – Spring-driven mechanism ensures consistent, reliable hose retrieval
Applications
Ideal for use with:
- Compressed air systems
- Water delivery
- Oil and hydraulic applications
- Grease distribution
- General industrial hose management
Specifications
| Model | Weight (kg) | Max Pressure (bar) | Hose ID (mm) | Hose OD (mm) | Outlet/Import (NPT) | Hose Length (m) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|
| LC600 OLS-S | 15 | 21 | 10 | 15 | 3/8" | 15 | 492×206×521 |
| LC607 OLS-S | 16 | 21 | 10 | 15 | 3/8" | 21 | 492×206×521 |
| LC800 OLS-S | 15 | 21 | 13 | 19 | 1/2" | 15 | 492×206×521 |
| LC807 OLS-S | 17 | 21 | 13 | 19 | 1/2" | 21 | 492×206×521 |
| DS605 OLS | 17 | 21 | 10 | 15 | 3/8" | 23 | 479×226×498 |
| DS805 OLS | 17 | 21 | 13 | 19 | 1/2" | 21 | 479×226×498 |
| DS900 OLS | 17 | 21 | 19 | 27 | 3/4" | 12 | 479×226×498 |
| DS806 OLS | 18 | 21 | 13 | 19 | 1/2" | 25 | 479×291×498 |
| DS807 OLS | 18 | 21 | 13 | 19 | 1/2" | 30 | 479×291×498 |
| D906 OLS | 18 | 21 | 19 | 27 | 3/4" | 20 | 479×291×498 |
| 56-00 OLS | 10 | 35 | 10 | 15 | 3/8" | 11 | 356×156×365 |
| 78-00 OLS | 19 | 35 | 13 | 19 | 1/2" | 15 | 502×178×514 |
| D92-00 OLSBW | 52 | 35 | 13 | 20 | 1/2" | 30 | 667×305×670 |
| D93-00 OLSBW | 53 | 35 | 19 | 30 | 3/4" | 23 | 667×305×670 |
| D94-00 OLSBW | 53 | 35 | 25 | 38 | 1" | 15 | 667×305×670 |
| D92-00 OMSBW | 54 | 207 | 13 | 21 | 1/2" | 23 | 667×305×670 |
| D93-00 OMSBW | 54 | 207 | 19 | 30 | 3/4" | 15 | 667×305×670 |
Manual Reel Options
| Model | Weight (kg) | Max Pressure (bar) | Outlet/Import (NPT) | Hose Length (m) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|
| HS18-000 | 16 | 35 | 1/2" | 130 | 508×464×483 |
| HS28-000 | 16 | 35 | 1/2" | 191 | 508×616×483 |
| HS19-000 | 17 | 35 | 3/4" | 130 | 508×464×483 |
| HS29-000 | 16 | 35 | 3/4" | 191 | 508×616×483 |
| HS37-000 L | 21 | 35 | 1" (M) | — | 604×584×626 |
Operating Temperature: Low and medium pressure reels max. 99°C | High pressure reels max. 65°C
Benefits
- Improves workspace organization and safety
- Extends hose service life through protected storage
- Reduces hose tangling and damage
- Enables quick, convenient hose deployment and retrieval
- Durable construction minimizes maintenance requirements
Note
Hose not included. For hose selection and availability, please consult CYCO.
