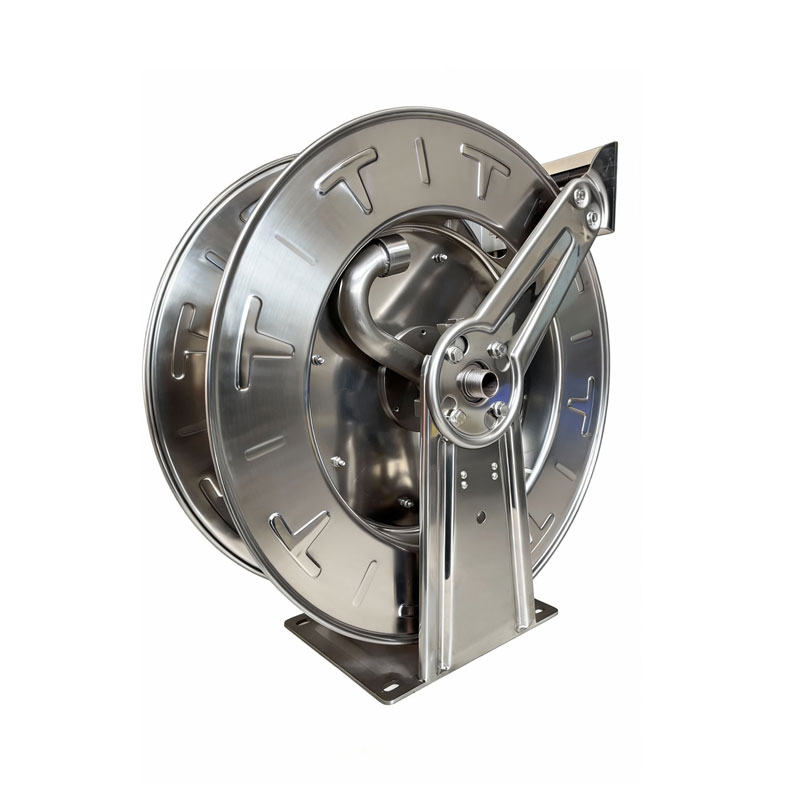

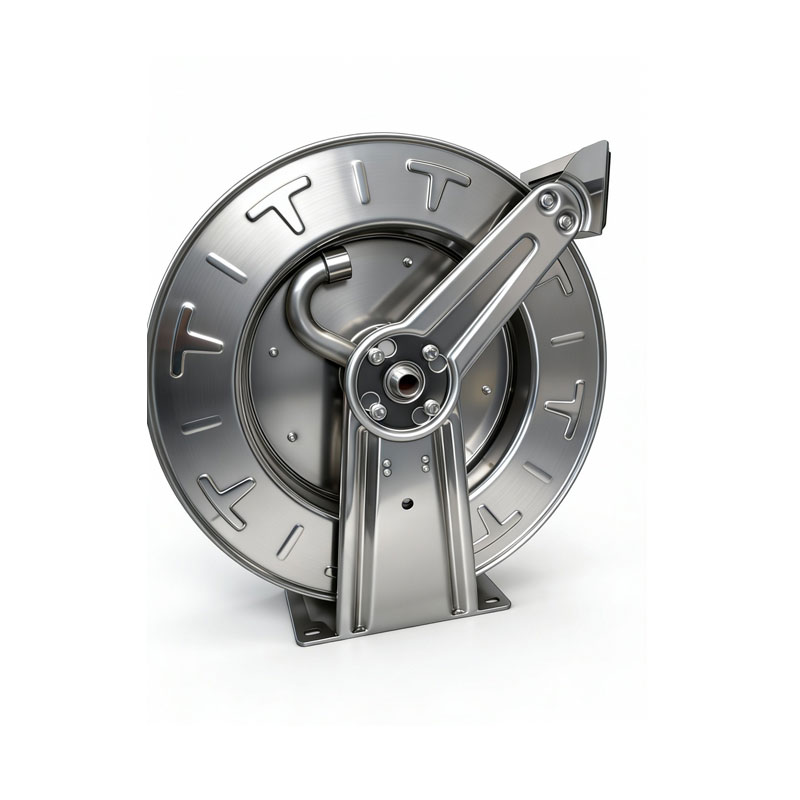

Stainless Steel Spring Driven Hose Reel CY-DS84
SKU: CY-DS84
Categories: Air Hose Reels | Hose Reels | Hydraulic Hose Reels | Oil Hose Reels | Spring-Driven Hose Reels
Overview
The CY-DS84 is a professional-grade spring-driven hose reel engineered for reliable automatic retraction and organized hose storage across industrial environments. Constructed from corrosion-resistant 304 stainless steel with electrochemical surface treatment, this reel delivers durability in workshops, factories, service centers, and construction sites while maintaining performance in demanding conditions.
Key Features
- Corrosion and Dirt Resistance – 304 stainless steel construction with electrochemical surface treatment prevents rust and environmental contamination
- Enclosed Drive Spring – Protected drive mechanism shields against environmental influences and extends component life
- Long Life Drive Springs – Clutch-type reel spool design virtually eliminates spring damage from reverse spool winding
- Adjustable Cushion Stop – Lock hose at any desired length for precise control and safety
- Adjustable Guide Arms – Multiple positioning options enable flexible installation on walls, ceilings, or floors
- Automatic Retraction – Spring-driven mechanism ensures smooth, hands-free hose retrieval
Applications
Ideal for use with:
- Compressed air systems
- Water delivery
- Oil and hydraulic lines
- Grease applications
- General industrial hose management
Specifications
| Model | Weight (kg) | Max Pressure (bar) | Hose ID (mm) | Hose OD (mm) | Outlet/Import (NPT) | Hose Length (m) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|
| LC600 OLS-S | 15 | 21 | 10 | 15 | 3/8" | 15 | 492×206×521 |
| LC607 OLS-S | 16 | 21 | 10 | 15 | 3/8" | 21 | 492×206×521 |
| LC800 OLS-S | 15 | 21 | 13 | 19 | 1/2" | 15 | 492×206×521 |
| LC807 OLS-S | 17 | 21 | 13 | 19 | 1/2" | 21 | 492×206×521 |
| DS605 OLS | 17 | 21 | 10 | 15 | 3/8" | 23 | 479×226×498 |
| DS805 OLS | 17 | 21 | 13 | 19 | 1/2" | 21 | 479×226×498 |
| DS900 OLS | 17 | 21 | 19 | 27 | 3/4" | 12 | 479×226×498 |
| DS806 OLS | 18 | 21 | 13 | 19 | 1/2" | 25 | 479×291×498 |
| DS807 OLS | 18 | 21 | 13 | 19 | 1/2" | 30 | 479×291×498 |
| D906 OLS | 18 | 21 | 19 | 27 | 3/4" | 20 | 479×291×498 |
| 56-00 OLS | 10 | 35 | 10 | 15 | 3/8" | 11 | 356×156×365 |
| 78-00 OLS | 19 | 35 | 13 | 19 | 1/2" | 15 | 502×178×514 |
| D92-00 OLSBW | 52 | 35 | 13 | 20 | 1/2" | 30 | 667×305×670 |
| D93-00 OLSBW | 53 | 35 | 19 | 30 | 3/4" | 23 | 667×305×670 |
| D94-00 OLSBW | 53 | 35 | 25 | 38 | 1" | 15 | 667×305×670 |
| D92-00 OMSBW | 54 | 207 | 13 | 21 | 1/2" | 23 | 667×305×670 |
| D93-00 OMSBW | 54 | 207 | 19 | 30 | 3/4" | 15 | 667×305×670 |
Operating Conditions
- Low and Medium Pressure Reels: Maximum 99°C
- High Pressure Reels: Maximum 65°C
Benefits
- Workspace Organization – Automatic retraction keeps hoses neatly stored and out of walkways
- Enhanced Safety – Reduces trip hazards and hose damage from improper storage
- Extended Hose Life – Controlled retraction and protected storage minimize wear and degradation
- Flexible Installation – Adjustable guide arms accommodate various mounting configurations
- Low Maintenance – Stainless steel construction and enclosed mechanisms reduce corrosion-related downtime
Note
Hose not included. For hose selection and compatibility, please consult CYCO.
