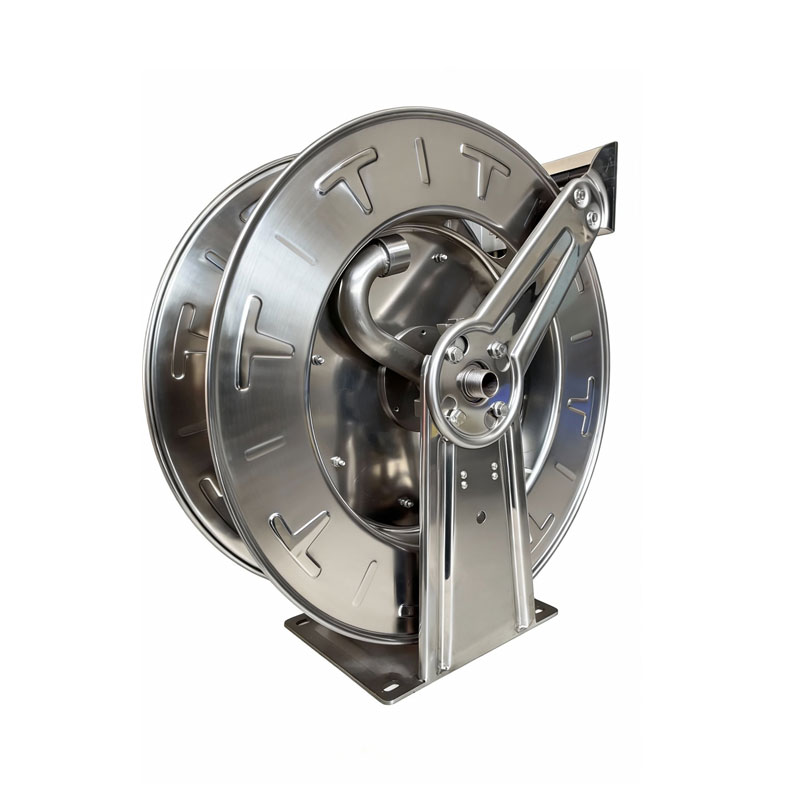

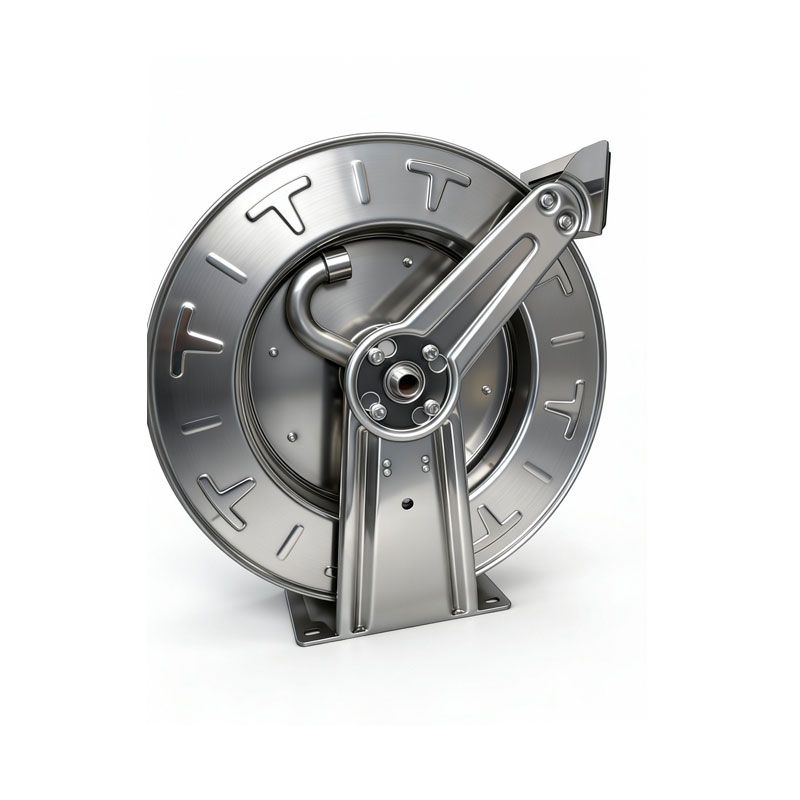

Stainless Steel Spring Driven Hose Reel CY-DS84
SKU: CY-DS84
Categories: Air Hose Reels | Hose Reels | Hydraulic Hose Reels | Oil Hose Reels | Spring-Driven Hose Reels
Overview
The CY-DS84 is a professional-grade spring-driven hose reel engineered for reliable automatic retraction and organized hose storage in demanding industrial environments. Constructed from corrosion-resistant 304 stainless steel with electrochemical surface treatment, this reel delivers durability and performance across workshops, factories, service centers, and construction sites. Designed for air, water, oil, hydraulic, and grease applications, it combines robust engineering with practical features that enhance workplace safety and extend hose lifespan.
Key Features
- Enclosed Drive Spring: Protected drive mechanism prevents environmental contamination and extends component life
- Adjustable Cushion Stop: Lock hose at any desired length for precise control and safety
- Adjustable Guide Arms: Multiple positioning options for flexible wall, ceiling, or floor installation
- Long-Life Drive Springs: Clutch-type reel spool virtually eliminates spring damage from reverse winding
- Corrosion & Dirt Resistance: 304 stainless steel construction with electrochemical surface treatment withstands harsh conditions
- Automatic Retraction: Spring-driven mechanism ensures smooth, consistent hose retrieval
Applications
- Compressed air systems
- Water delivery and circulation
- Hydraulic fluid transfer
- Oil distribution
- Grease lubrication systems
- Industrial workshops and maintenance facilities
- Construction and service operations
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Pressure | 21 bar |
| Operating Temperature | Up to 99°C (low and medium pressure) |
| Material | 304 Stainless Steel |
| Drive Type | Spring-Driven with Clutch Mechanism |
| Weight (without hose) | Varies by model |
| Hose Connection | NPT Internal Thread |
| Installation | Wall, Ceiling, or Floor Mount |
Available Models
The CY-DS84 series includes multiple configurations to accommodate various hose sizes and lengths:
| Model | Weight (kg) | Hose ID (mm) | Hose OD (mm) | Outlet | Hose Length (m) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|
| LC600 OLS-S | 15 | 10 | 15 | 3/8" | 15 | 492×206×521 |
| LC607 OLS-S | 16 | 10 | 15 | 3/8" | 21 | 492×206×521 |
| LC800 OLS-S | 15 | 13 | 19 | 1/2" | 15 | 492×206×521 |
| LC807 OLS-S | 17 | 13 | 19 | 1/2" | 21 | 492×206×521 |
| DS605 OLS | 17 | 10 | 15 | 3/8" | 23 | 479×226×498 |
| DS805 OLS | 17 | 13 | 19 | 1/2" | 21 | 479×226×498 |
| DS900 OLS | 17 | 19 | 27 | 3/4" | 12 | 479×226×498 |
| DS806 OLS | 18 | 13 | 19 | 1/2" | 25 | 479×291×498 |
| DS807 OLS | 18 | 13 | 19 | 1/2" | 30 | 479×291×498 |
| D906 OLS | 18 | 19 | 27 | 3/4" | 20 | 479×291×498 |
| 56-00 OLS | 10 | 10 | 15 | 3/8" | 11 | 356×156×365 |
| 78-00 OLS | 19 | 13 | 19 | 1/2" | 15 | 502×178×514 |
| D92-00 OLSBW | 52 | 13 | 20 | 1/2" | 30 | 667×305×670 |
| D93-00 OLSBW | 53 | 19 | 30 | 3/4" | 23 | 667×305×670 |
| D94-00 OLSBW | 53 | 25 | 38 | 1" | 15 | 667×305×670 |
| D92-00 OMSBW | 54 | 13 | 21 | 1/2" | 23 | 667×305×670 |
| D93-00 OMSBW | 54 | 19 | 30 | 3/4" | 15 | 667×305×670 |
Manual Reel Options
For applications requiring manual operation, the HS series provides reliable alternatives:
| Model | Weight (kg) | Pressure (bar) | Outlet | Hose Length (m) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|
| HS18-000 | 16 | 35 | 1/2" | 130 | 508×464×483 |
| HS28-000 | 16 | 35 | 1/2" | 191 | 508×616×483 |
| HS19-000 | 17 | 35 | 3/4" | 130 | 508×464×483 |
| HS29-000 | 16 | 35 | 3/4" | 191 | 508×616×483 |
| HS37-000 L | 21 | 35 | 1" | — | 604×584×626 |
Important Notes
- Hose not included. Consult CYCO for compatible hose selection and availability.
- Manual medium pressure reels operate at maximum 99°C.
- All models feature NPT internal thread connections for standard industrial compatibility.
