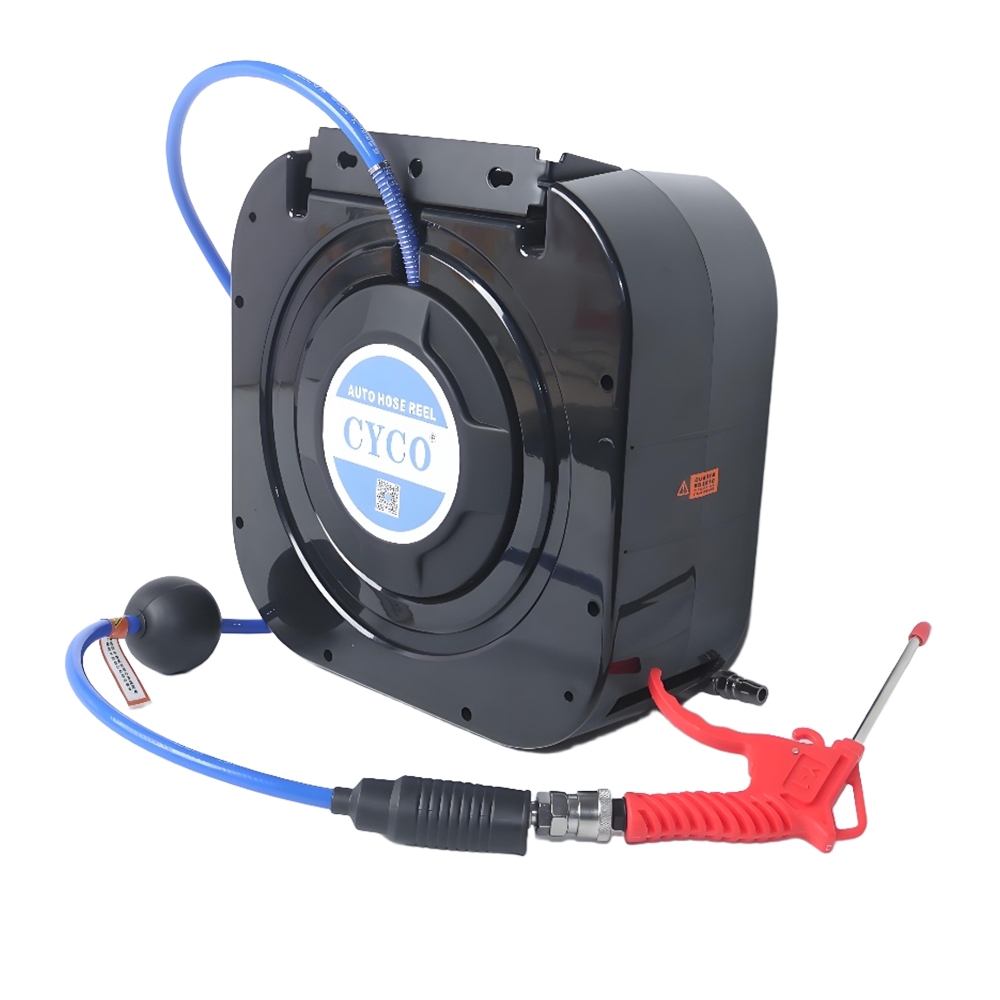

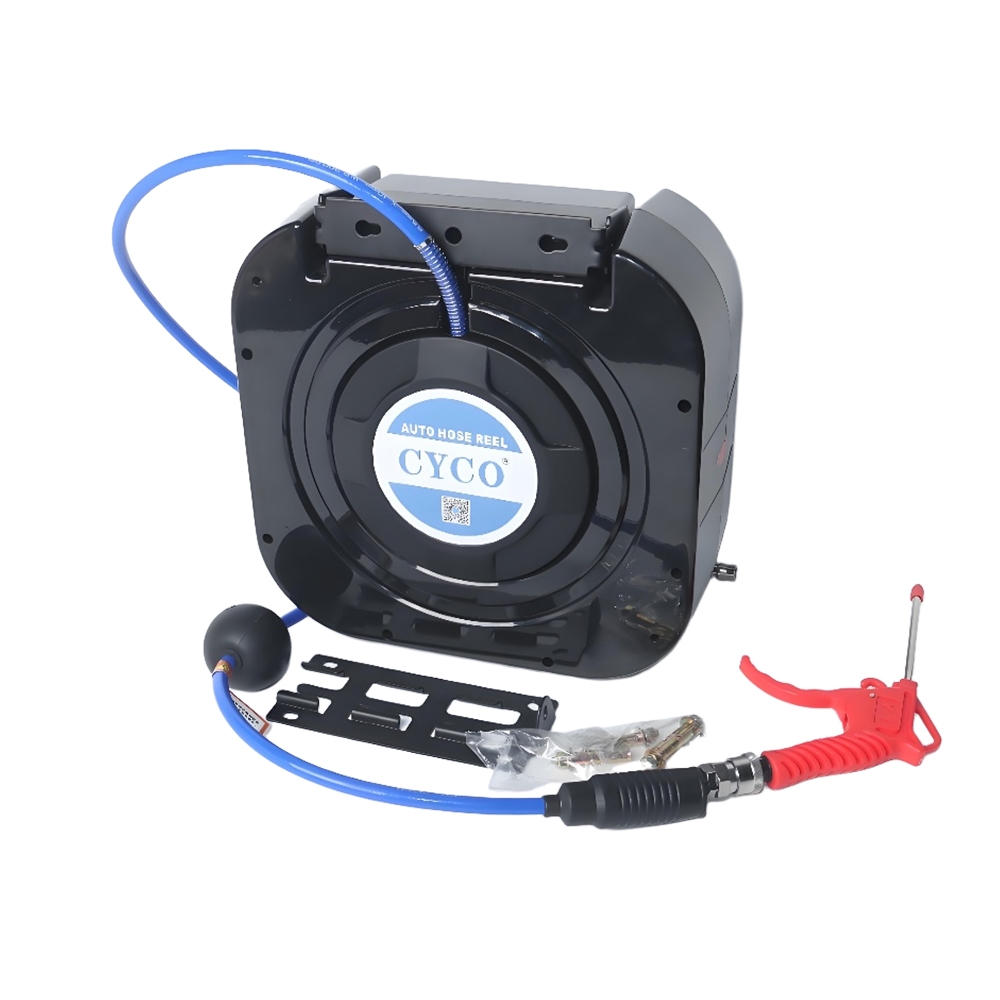

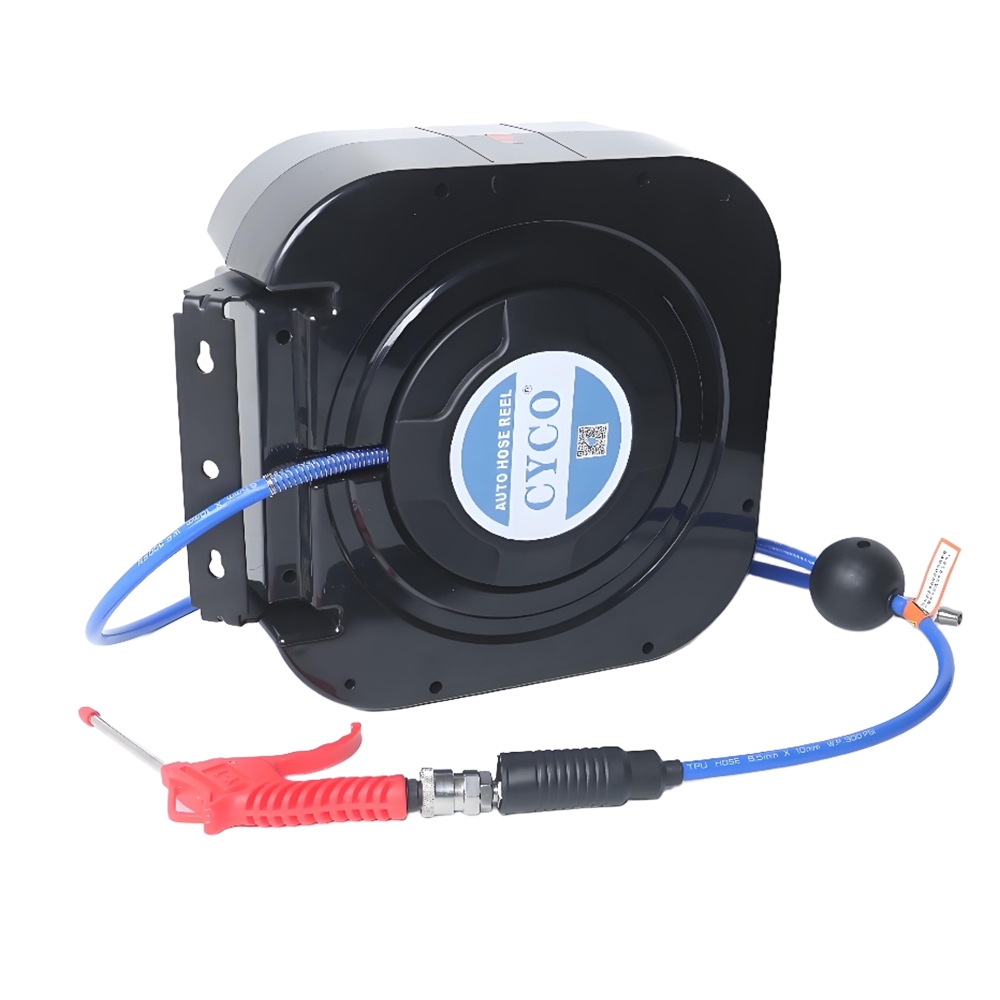

Spring Retractable Air Hose Reel CY-8W
SKU: CY-8W
Category: Air Hose Reels, Spring-Driven Hose Reels
Overview
The CY-8W Spring Retractable Air Hose Reel delivers modular flexibility and industrial durability for compressed air and water delivery in demanding workshop and automotive environments. Built with aviation-grade spring technology, dual-layer PU hose construction, and patented anti-leak seals, this reel provides reliable automatic retraction with adjustable force settings to prevent spring fatigue and ensure consistent performance across extended service life.
Key Features
- Modular Design – Functions as a standalone unit or extends in combination for flexible deployment
- Aviation-Grade Spring – Maintains consistent retraction force after 10,000+ cycles with adjustable tension to prevent fatigue
- Dual-Layer PU Hose – Anti-freezing, kink-resistant construction with superior tensile strength
- Patented Anti-Leak Seals – Multi-stage sealing structure prevents air loss and extends operational efficiency
- High-Precision Brass Spindle – Corrosion-resistant, wear-resistant multi-alloy copper construction resists rust and deformation
- 180° Swivel Bracket – Mobile mounting bracket expands working range for workshops and service centers
- Self-Locking Connectors – Automotive-grade joints withstand high pressure with zero air leakage
- Double-Bearing Operation – Lubricated steel bearings minimize friction and extend product lifespan
- Dust-Proof Composite Shell – Closed structure prevents debris ingress and protects internal components
- Anti-Tangle Free-Recycling System – Prevents hose entanglement during retraction
Specifications
| Parameter | Details |
|---|---|
| Hose Diameter | Φ6.5mm×10mm / Φ8mm×12mm / Φ10mm×14.5mm |
| Input Pipe Length | 1m |
| Output Pipe Length | 8m, 10m, 12m, 15m, 20m |
| Working Pressure | 1.5 MPa |
| Burst Pressure | 4.5 MPa |
| Hose Material | Polyether yarn tube (dual-layer PU) |
| Conveying Medium | Compressed air, atmospheric pressure water |
| Spindle Material | High-precision multi-alloy copper |
| Shell Material | High-polymer composite plastic |
| Packing Dimensions | 350×170×400mm |
| Minimum Order Quantity | 200 pcs |
Applications
- Automotive service centers and repair shops
- Industrial workshops and manufacturing facilities
- Pneumatic tool operation and maintenance
- Compressed air distribution systems
- Water delivery in controlled environments
Technical Advantages
The CY-8W combines proven industrial engineering with innovative design features. The adjustable spring tension mechanism eliminates traditional fatigue issues while the high-precision brass spindle and wear-resistant ratchet seat ensure long-term reliability without misalignment. The self-locking connector system meets automotive maintenance standards with zero pressure loss, while the closed composite shell protects against environmental contamination and extends hose lifespan in demanding conditions.
Customization
This product is fully customizable to meet specific operational requirements. Available configurations support hose lengths from 8 to 20 meters with multiple diameter options.
Ready to optimize your compressed air delivery system? Contact us for pricing, OEM/ODM solutions, or bulk orders of the CY-8W Spring Retractable Air Hose Reel.
