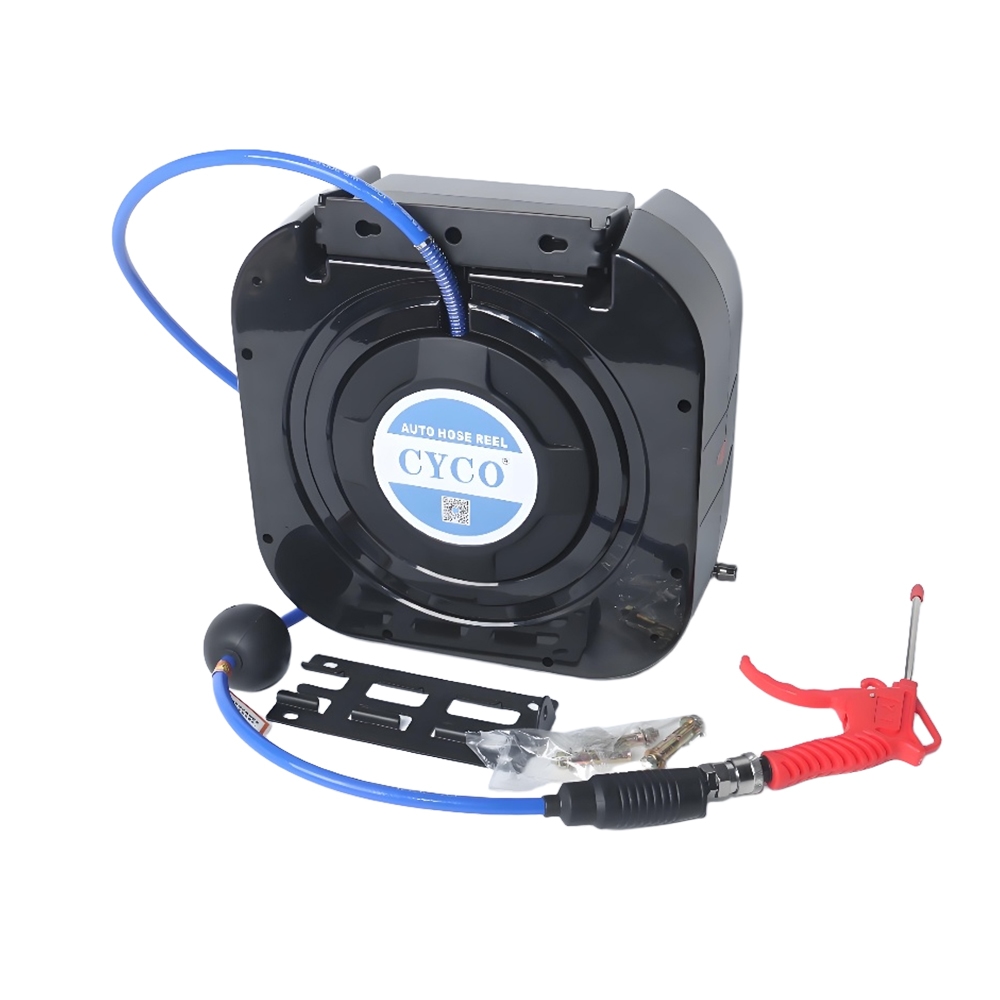

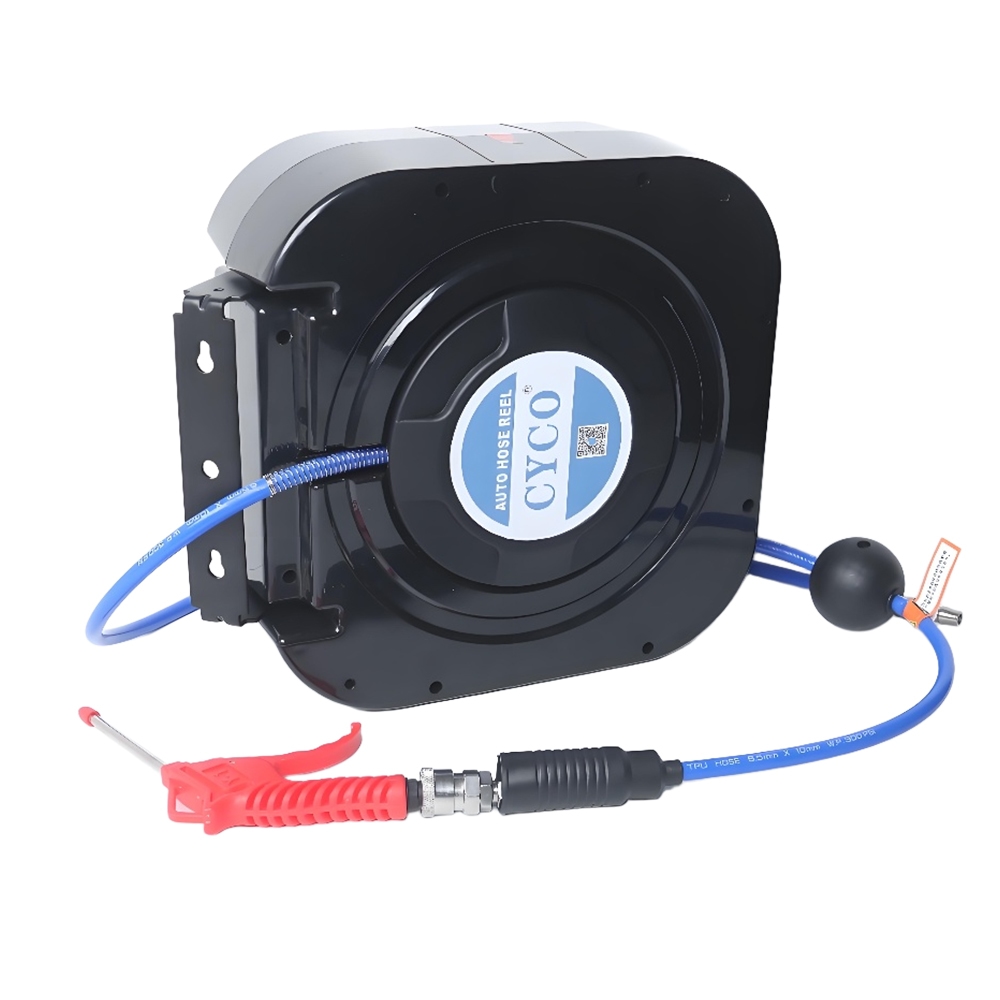

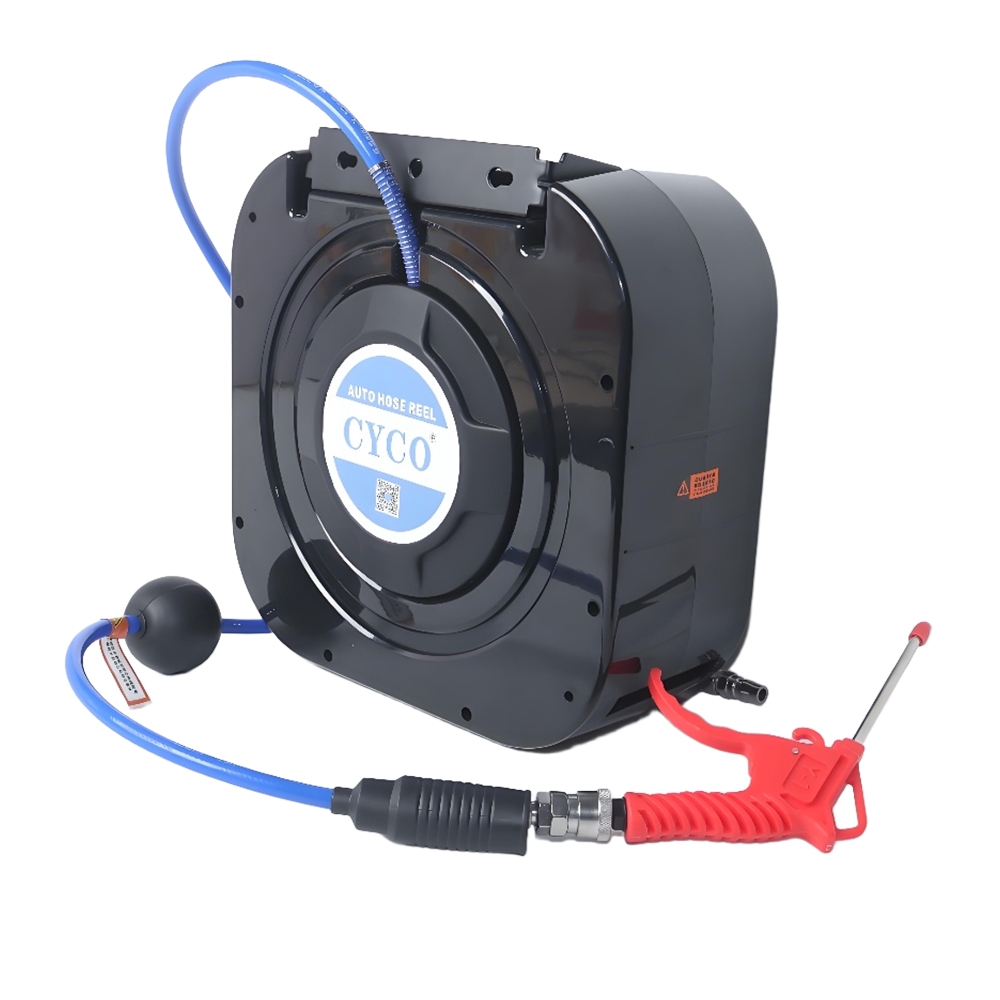

Spring Retractable Air Hose Reel CY-8W
SKU: CY-8W
Category: Air Hose Reels, Spring-Driven Hose Reels
Overview
The CY-8W Spring Retractable Air Hose Reel delivers modular flexibility and industrial-grade durability for compressed air and water delivery in demanding workshop and automotive environments. Built with aviation-grade spring technology, dual-layer PU hose construction, and patented anti-leak seals, this reel provides reliable automatic retraction with adjustable force settings to prevent spring fatigue and ensure consistent performance across thousands of cycles.
Key Features
- Modular Design – Functions as a standalone unit or extends in combination for flexible deployment
- Dual-Layer PU Hose – Anti-freezing, kink-resistant construction with superior tensile strength
- Aviation-Grade Spring – Maintains consistent retraction force after 10,000+ cycles with adjustable tension control
- Patented Anti-Leak Seals – Multiple sealing structure prevents air loss and extends operational life
- High-Precision Brass Spindle – Corrosion-resistant, wear-resistant multi-alloy copper construction
- 180° Swivel Bracket – Mobile mounting with extended working range for workshop flexibility
- Self-Locking Connectors – Automotive-grade joints with high pressure resistance and zero air leakage
- Double-Bearing Operation – Lubricated steel bearings minimize friction and extend product lifespan
- Dust-Proof Composite Shell – Closed structure prevents debris ingress and protects internal components
- Anti-Lock Mechanism – Original design prevents ratchet misalignment and deformation
Specifications
| Parameter | Details |
|---|---|
| Hose Material | Polyether yarn tube (dual-layer PU) |
| Hose Diameter | Φ6.5mm×10mm / Φ8mm×12mm / Φ10mm×14.5mm |
| Input Pipe Length | 1m |
| Output Pipe Length | 8m, 10m, 12m, 15m, 20m |
| Operating Pressure | 1.5 MPa |
| Burst Pressure | 4.5 MPa |
| Conveying Medium | Compressed air, atmospheric pressure water |
| Spindle Material | High-precision multi-alloy copper |
| Shell Material | High-polymer composite plastic |
| Swivel Bracket | 180° rotation range |
| Packing Dimensions | 350×170×400mm |
Applications
- Automotive service centers and repair shops
- Industrial workshops and manufacturing facilities
- Pneumatic tool operations
- Equipment maintenance and cleaning
- Mobile service operations requiring flexible hose deployment
Technical Advantages
Durability & Reliability
- Aviation-grade spring maintains consistent performance through extended service cycles
- Adjustable retraction force prevents premature spring fatigue
- Wear-resistant pawl ratchet seat resists deformation and misalignment
Performance & Efficiency
- Double-bearing lubrication system minimizes friction and energy loss
- Free recycling pipeline device prevents hose entanglement
- High-precision brass spindle ensures smooth, consistent operation
Operational Safety
- Self-locking automotive-grade connectors eliminate air leakage
- Closed dust-proof design protects internal mechanisms
- Multiple sealing structure provides redundant leak prevention
Flexibility & Convenience
- 180° swivel bracket accommodates varied workspace configurations
- Modular design allows standalone or combined deployment
- Available in multiple hose lengths (8–20m) for diverse applications
Customization & Ordering
Minimum Order Quantity: 200 pcs
Customizable Options: Available upon request
Send Inquiry for pricing, OEM/ODM solutions, bulk orders, or custom specifications.
