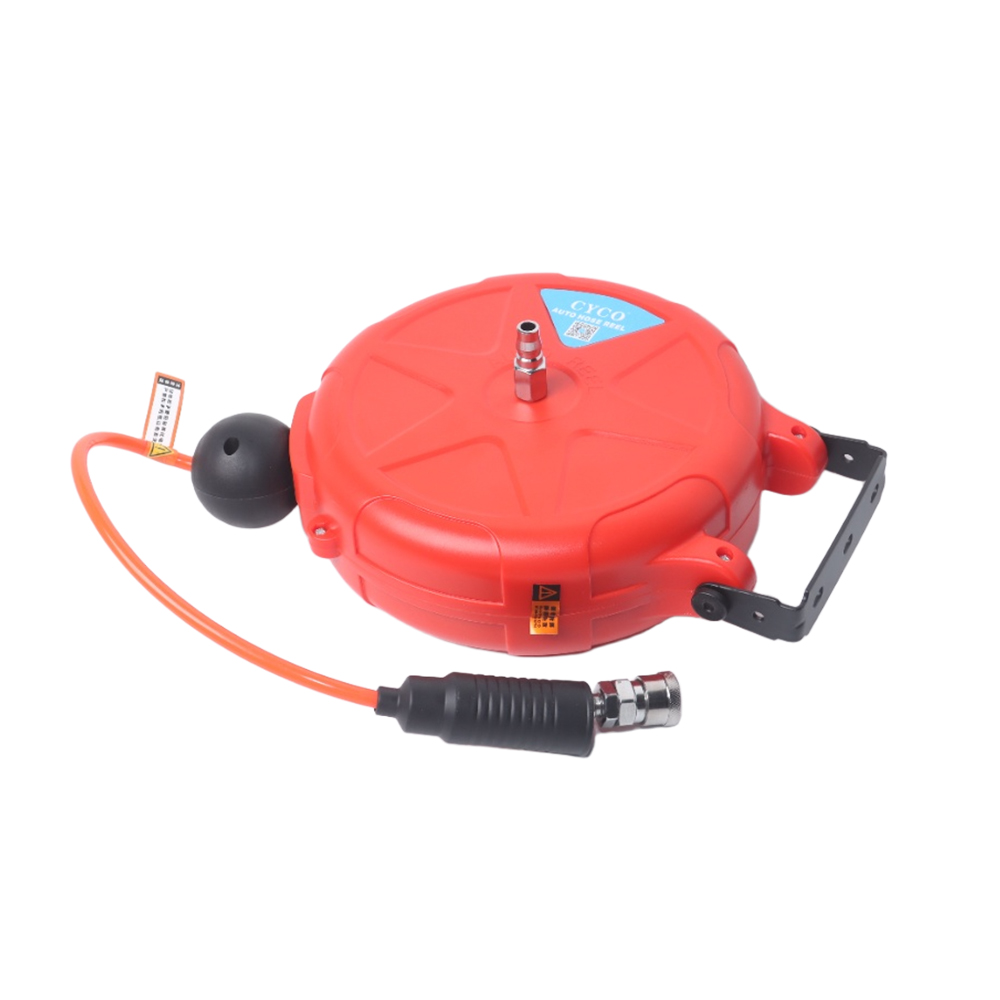

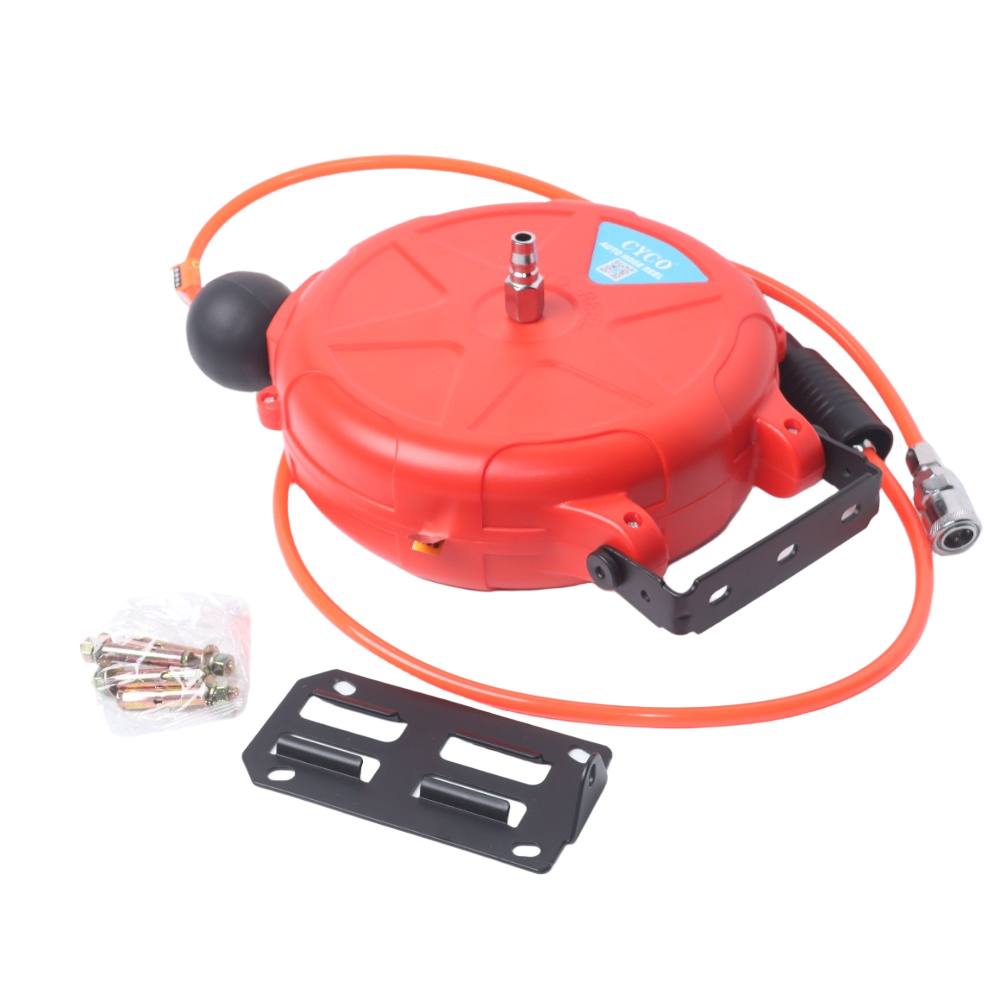

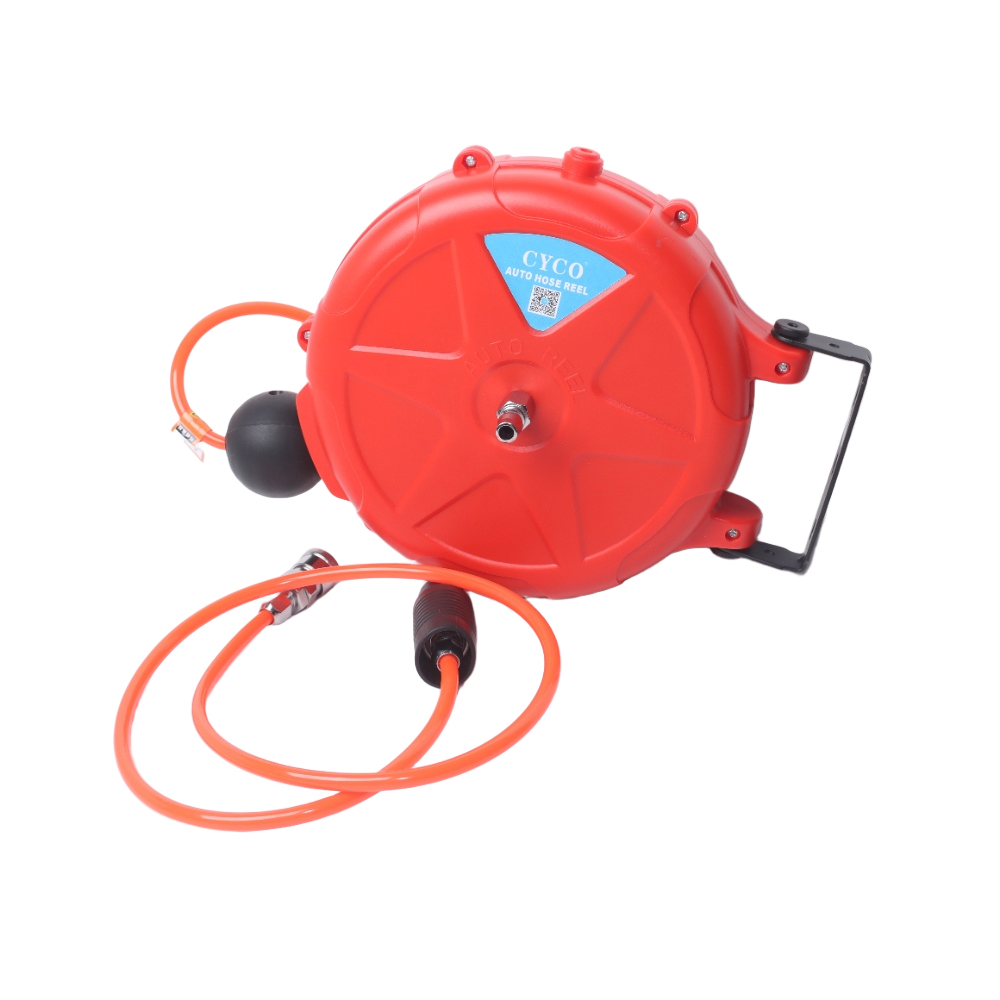

Mini Plastic Retractable Industrial Air Hose Reel CY-1Q
SKU: CY-1Q
Category: Air Hose Reels, Spring-Driven Hose Reels
Overview
The CY-1Q is a compact, self-locking retractable hose reel designed for efficient air and water line management in industrial workshops and automotive service centers. Its one-handed operation, automatic retraction mechanism, and durable construction make it an ideal solution for compressed air and water delivery up to 1.5MPa.
Key Features
- Self-Locking & Self-Winding Mechanism – Automatic retraction with manual control; hose locks in place when released
- One-Handed Operation – Easy deployment and retrieval without additional tools
- Durable ABS Polymer Shell – Lightweight, corrosion-resistant, and heat-resistant construction
- Double-Layer PU Yarn-Reinforced Hose – Anti-freezing, kink-resistant, and high tensile strength
- Aviation-Grade Spring – Maintains consistent retraction force after 10,000+ cycles
- Multi-Alloy Copper Spindle – Wear-resistant, corrosion-resistant, and rust-resistant
- 180° Swing Bracket – Mobile mounting with extended working range
- Enclosed Dust-Proof Design – Protects hose and internal components from debris
- Adjustable Spring Force – Customizable tension to prevent fatigue
- Leak-Proof Seals – High-precision sealing structure prevents air loss
- Double Steel Bearing Lubrication – Minimizes friction and extends product lifespan
Technical Specifications
| Specification | Details |
|---|---|
| Hose Diameter Options | 6.5mm × 10mm, 8mm × 12mm, 10mm × 14.5mm |
| Input Hose Length | 1m |
| Output Hose Length | 8m, 10m, 12m, 15m, 20m |
| Operating Pressure | 1.5MPa |
| Burst Pressure | 4.5MPa |
| Conveying Medium | Compressed air, normal pressure water |
| Shell Material | ABS polymer |
| Hose Material | Polyether with yarn reinforcement |
| Spindle Material | Multi-alloy copper |
| Spring Type | Aviation-grade, adjustable tension |
| Connector | Steel self-locking fast connector |
| Packing Dimensions | 350 × 170 × 400mm |
Design & Construction
The CY-1Q features a modular design that functions as a standalone unit or extends through combination configurations. The double-layer PU yarn-reinforced hose delivers superior durability with anti-freezing and kink-resistant properties. The aviation-grade spring maintains consistent retraction force through extended use cycles, while the adjustable coil spring tension prevents premature fatigue.
The high-precision multi-alloy copper spindle and air guide mechanism provide exceptional wear and corrosion resistance. A wear-resistant pawl ratchet seat ensures reliable locking without deformation or misalignment. The enclosed structure with free recycling pipeline device prevents hose entanglement and protects internal components from dust and debris.
Performance Advantages
- Extended Service Life – Double steel bearing lubrication and enclosed design minimize wear and contamination
- Reliable Pressure Handling – Self-locking joints rated for high-pressure applications with zero air leakage
- Flexible Workspace Coverage – 180° swing bracket accommodates various workshop layouts and vehicle positions
- Maintenance-Free Operation – Sealed construction and corrosion-resistant materials reduce maintenance requirements
- Consistent Performance – Adjustable spring force and precision engineering ensure reliable operation across multiple cycles
Applications
- Automotive service and repair centers
- Industrial workshops and manufacturing facilities
- Pneumatic tool operation
- Compressed air and water delivery systems
- Mobile maintenance operations
