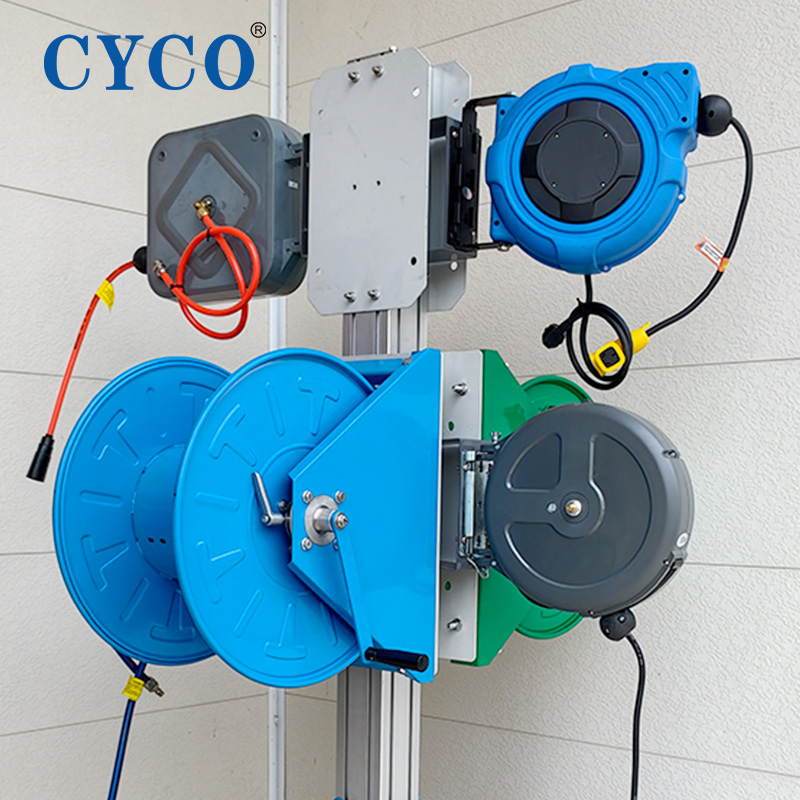

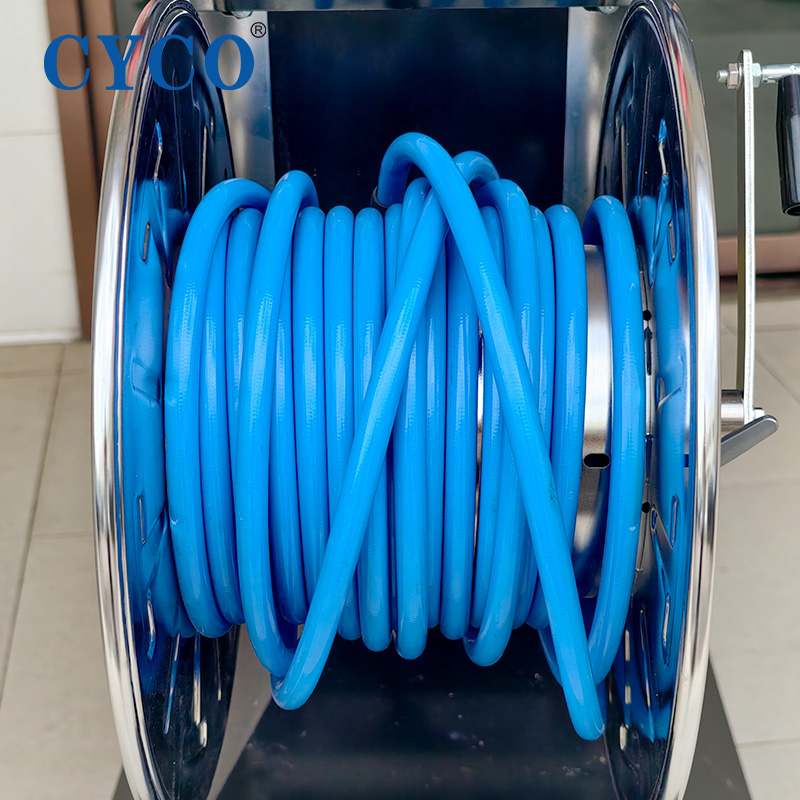

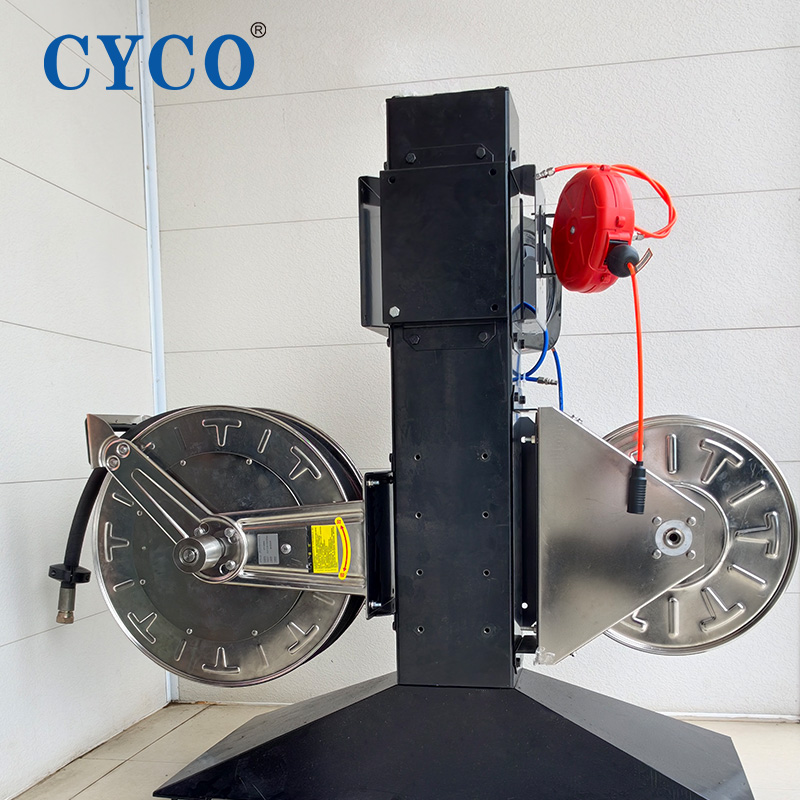

CYCO Hose Reel CY-DS84/CY-DS900/CY-HS18 Series
SKU: CY-DS84, CY-DS900, CY-HS18
Category: Hose Reels, Manual Hose Reels, Spring-Driven Hose Reels, Water Hose Reels
Overview
The CYCO hose reel series delivers industrial-grade hose management for demanding applications including air, water, oil, grease, chemicals, and cleaning operations. Engineered with 304 stainless steel construction and corrosion-resistant surface treatment, these reels maintain reliable performance in industrial and marine environments. Available in spring-driven and manual configurations with flexible mounting options for walls, ceilings, floors, and vehicles.
Key Features
- Adjustable buffer stop – Maintains any desired hose length outside the reel for operational flexibility
- Adjustable guide arm – Multiple positioning options enable versatile use and field adjustment
- Enclosed drive spring – Protected drive mechanism shields against environmental exposure
- Long-life drive spring – Clutch-type reel shaft core minimizes spring damage from reverse winding
- Corrosion and stain resistance – 304 stainless steel stamping with electrochemical surface treatment
- 316L stainless steel option – Available for enhanced corrosion resistance in coastal and offshore environments
- Multiple mounting configurations – Wall, ceiling, floor, and vehicle installation capability
Applications
- Food production facilities
- Industrial cleaning operations
- Chemical delivery systems
- Industrial solvent treatment
- Coastal and offshore environments
- Marine applications
Spring-Driven Hose Reel Specifications
| Model | Weight (kg) | Max Pressure (bar) | Hose ID (mm) | Hose OD (mm) | Outlet NPT | Hose Length (m) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|
| LC600 OLS-S | 15 | 21 | 10 | 15 | 3/8" | 15 | 492×206×521 |
| LC607 OLS-S | 16 | 21 | 10 | 15 | 3/8" | 21 | 492×206×521 |
| LC800 OLS-S | 15 | 21 | 13 | 19 | 1/2" | 15 | 492×206×521 |
| LC807 OLS-S | 17 | 21 | 13 | 19 | 1/2" | 21 | 492×206×521 |
| DS605 OLS | 17 | 21 | 10 | 15 | 3/8" | 23 | 479×226×498 |
| DS805 OLS | 17 | 21 | 13 | 19 | 1/2" | 21 | 479×226×498 |
| DS900 OLS | 17 | 21 | 19 | 27 | 3/4" | 12 | 479×226×498 |
| DS806 OLS | 18 | 21 | 13 | 19 | 1/2" | 25 | 479×291×498 |
| DS807 OLS | 18 | 21 | 13 | 19 | 1/2" | 30 | 479×291×498 |
| D906 OLS | 18 | 21 | 19 | 27 | 3/4" | 20 | 479×291×498 |
| 56-00 OLS | 10 | 35 | 10 | 15 | 3/8" | 11 | 356×156×365 |
| 78-00 OLS | 19 | 35 | 13 | 19 | 1/2" | 15 | 502×178×514 |
| D92-00 OLSBW | 52 | 35 | 13 | 20 | 1/2" | 30 | 667×305×670 |
| D93-00 OLSBW | 53 | 35 | 19 | 30 | 3/4" | 23 | 667×305×670 |
| D94-00 OLSBW | 53 | 35 | 25 | 38 | 1" | 15 | 667×305×670 |
| D92-00 OMSBW | 54 | 207 | 13 | 21 | 1/2" | 23 | 667×305×670 |
| D93-00 OMSBW | 54 | 207 | 19 | 30 | 3/4" | 15 | 667×305×670 |

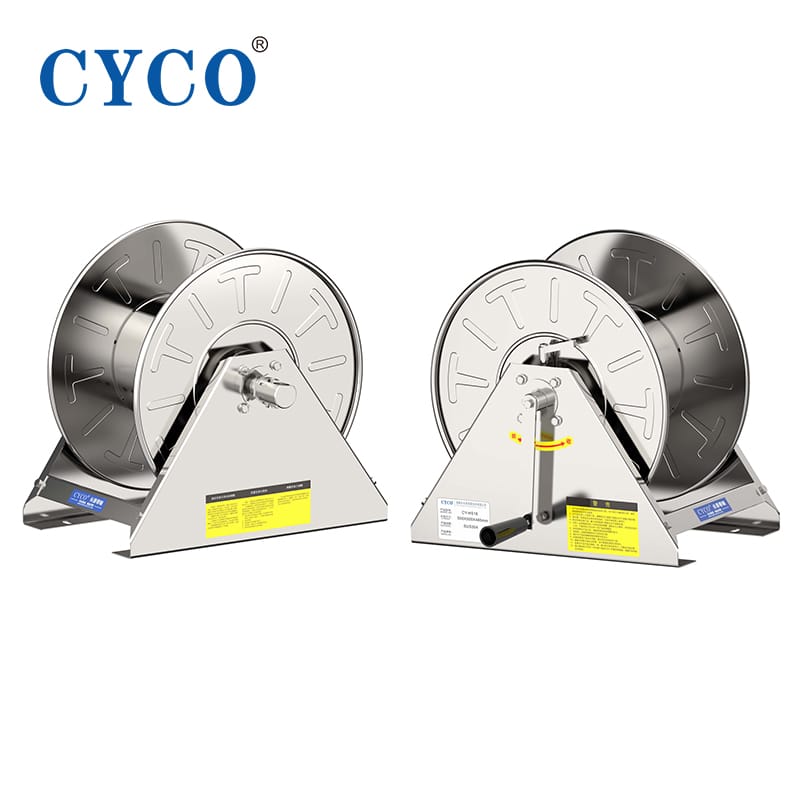

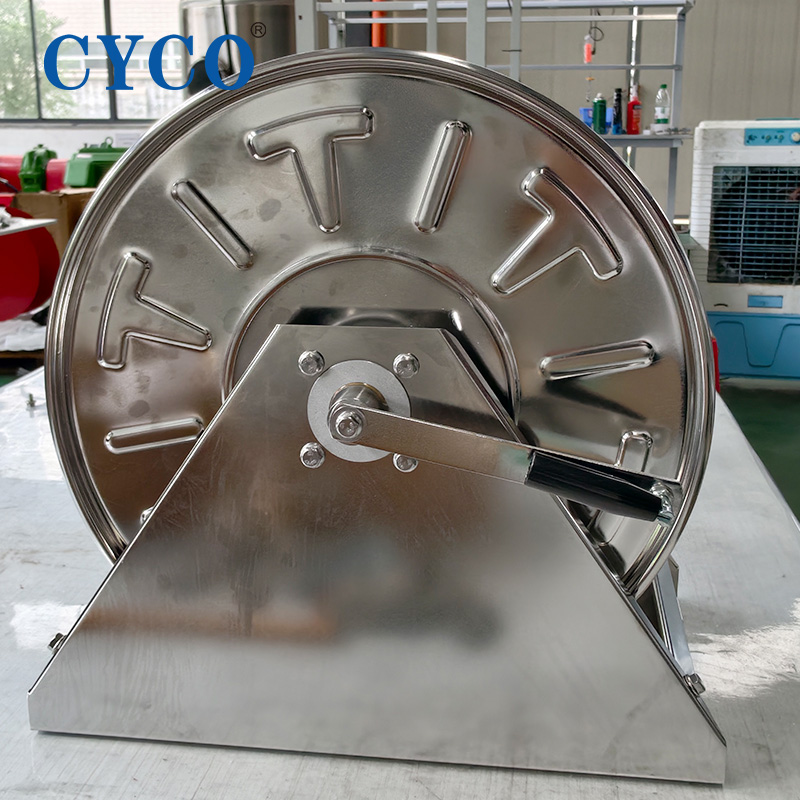

Manual Hose Reel Specifications
| Model | Weight (kg) | Max Pressure (bar) | Outlet NPT | Import NPT | Hose Length (m) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|
| HS18-000 | 16 | 35 | 1/2" | 1/2" | 130 | 508×464×483 |
| HS28-000 | 16 | 35 | 1/2" | 1/2" | 191 | 508×616×483 |
| HS19-000 | 17 | 35 | 3/4" | 3/4" | 130 | 508×464×483 |
| HS29-000 | 16 | 35 | 3/4" | 3/4" | 191 | 508×616×483 |
| HS37-000 L | 21 | 35 | 1" (M) | 1" | — | 604×584×626 |
Operating Conditions
- Low and medium pressure reels: Maximum 99°C
- High pressure reels: Maximum 65°C
Customization Options
- 316L stainless steel construction available for enhanced corrosion resistance
- Custom configurations supported for specialized applications
- Hose not included; consult CYCO for hose selection and compatibility
Ready to optimize your hose management system? Send an inquiry for pricing, OEM/ODM partnerships, bulk orders, or custom configurations tailored to your industrial requirements.
