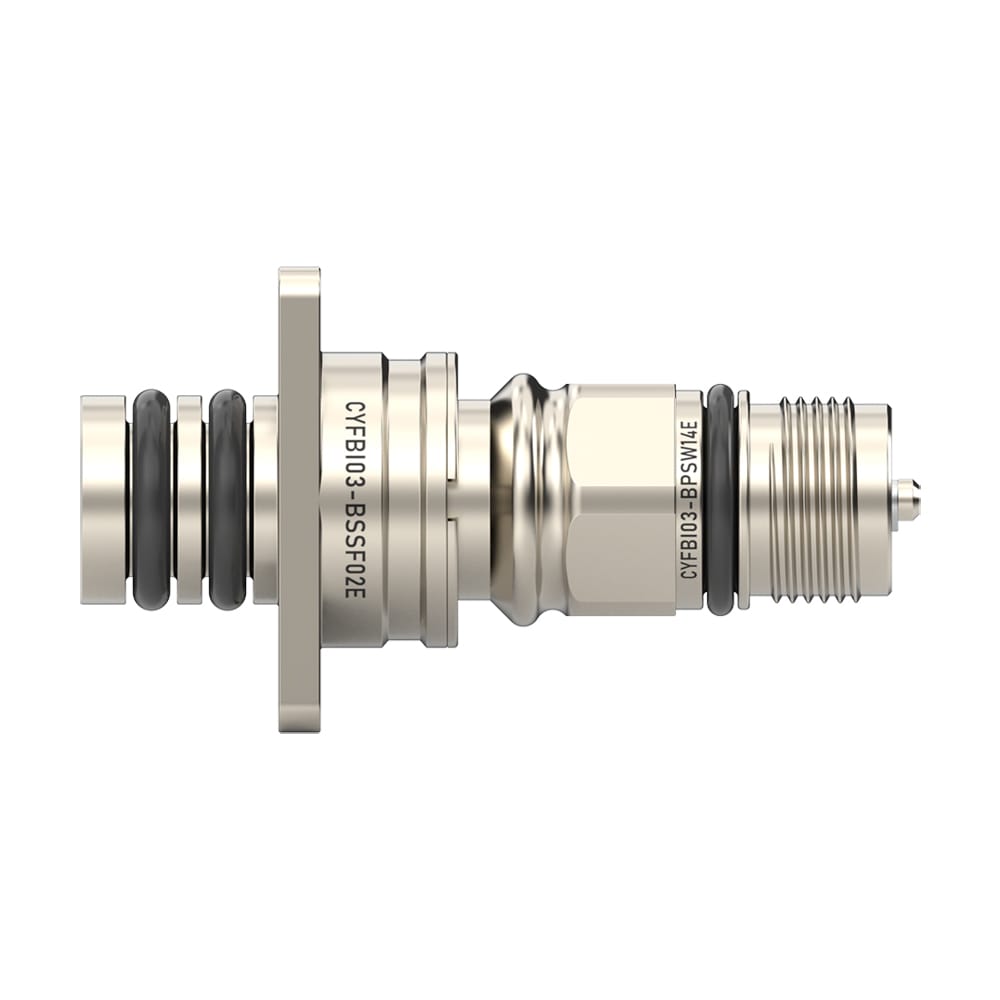

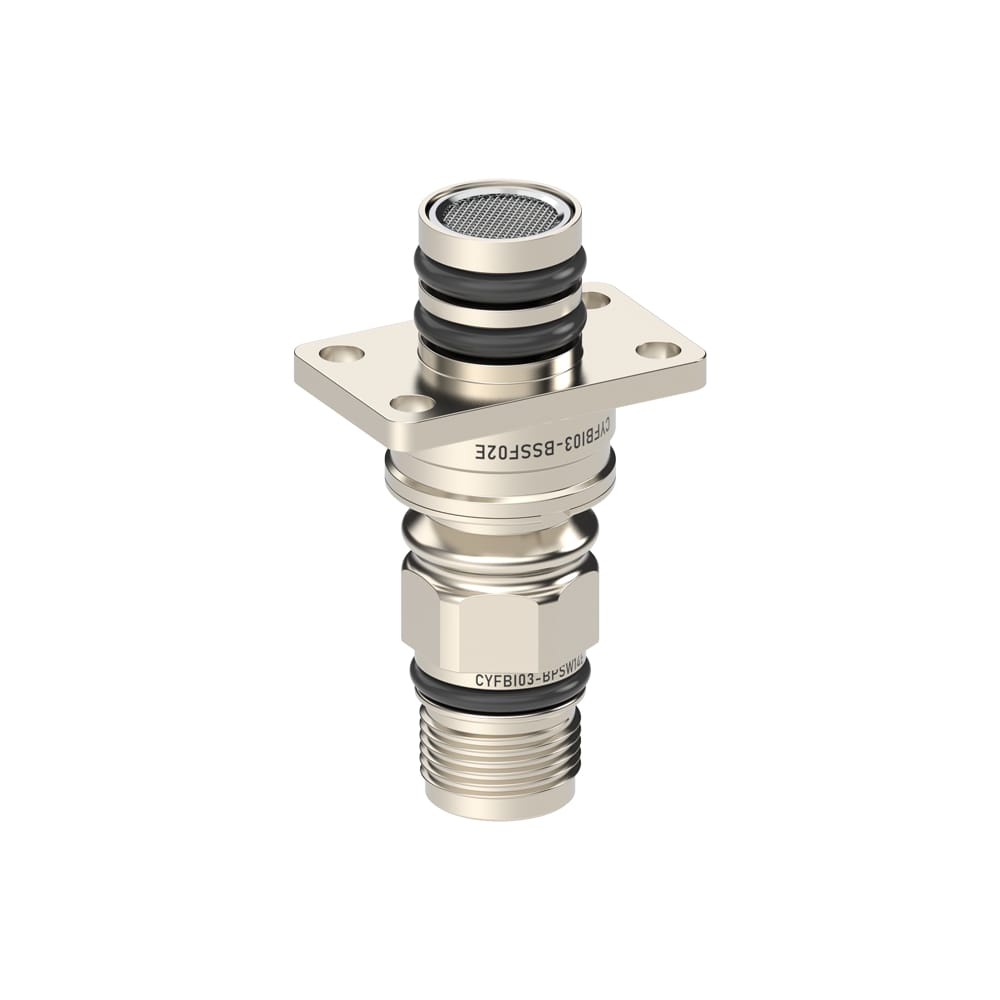

Floating Blind Mate Quick Coupling (CYFBI)
SKU: CYFBI
Categories: Quick Couplings, Thermal Control Couplings
Overview
The Floating Blind Mate Quick Coupling (CYFBI) is a precision quick-connect fluid coupling engineered for tool-free, leak-free connection and disconnection. Its innovative floating structure compensates for misalignment up to ±1.0 mm, delivering reliable performance in demanding applications. Built from corrosion-resistant aluminum alloy and rated for 20 bar pressure with a mechanical lifespan of approximately 1000 cycles, the CYFBI is purpose-built for liquid cooling systems, data center fluid management, and precision industrial applications requiring frequent assembly and maintenance.
Key Features
- Floating Structure Design – Compensates for misalignment up to ±1.0 mm during mating, ensuring smooth and accurate coupling without manual adjustment
- Tool-Free Operation – Quick-release mechanism enables fast connection and disconnection without additional equipment
- Leak-Free Performance – Flat dustproof structure with precision engineering eliminates leakage during operation and standby
- Corrosion-Resistant Construction – Aluminum alloy shell and coating withstand harsh industrial environments
- No External Locking Required – Relies on integrated structural design for secure, reliable connections
- High Mechanical Durability – Rated for approximately 1000 connection cycles
Technical Specifications
| Specification | Value |
|---|---|
| Effective Flow Diameter | DN |
| Material | Aluminum Alloy |
| Maximum Pressure | 20 bar |
| Mechanical Lifespan | ~1000 cycles |
| Floating Distance (Misalignment Compensation) | ±1.0 mm |
| Working Temperature Range | -40°C to +125°C |
| Applicable Fluids | Deionized Water, Purified Water, Water-Glycol, Water-Propylene Glycol |
Applications
- Data Center Liquid Cooling – Efficient thermal management for high-density computing environments
- Precision Industrial Systems – Applications requiring frequent assembly and disassembly with minimal downtime
- Liquid Cooling Systems – Automotive, electronics, and industrial cooling circuits
- Maintenance-Intensive Operations – Systems where tool-free quick-connect capability reduces service time and labor costs
Structural Advantages
- Leak-free, safe, and reliable connection and disconnection
- Strong error correction capability with maximum ±1.0 mm misalignment compensation
- Flat dustproof design prevents contamination and fluid loss
- Durable corrosion-resistant coating for extended service life
- Integrated locking mechanism eliminates need for external fastening
Fluid Compatibility
The CYFBI is compatible with:
- Deionized water
- Purified water
- Water-glycol coolants
- Water-propylene glycol coolants
