Auto Rewind Air Compressor Hose Reel
SKU
R1015Q-10
Hose Material
Double-layer PU with clamping yarn reinforcement
Hose Sizes
6.5mm × 10mm / 8mm × 12mm / 10mm × 14.5mm
Operating Pressure
1.5 MPa
Burst Pressure
4.5 MPa
Shell Material
ABS polymer composite
Bracket Rotation
180° swivel
Packing Dimensions
350 × 170 × 400mm

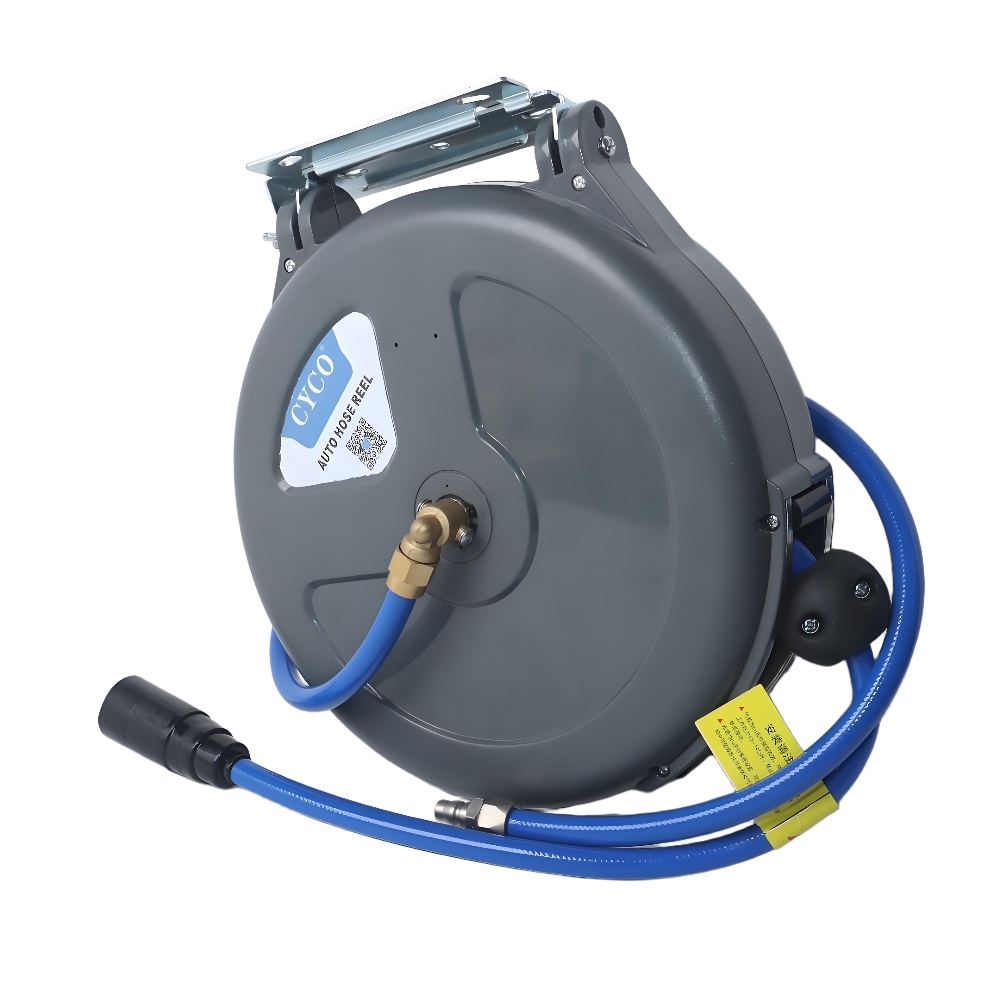

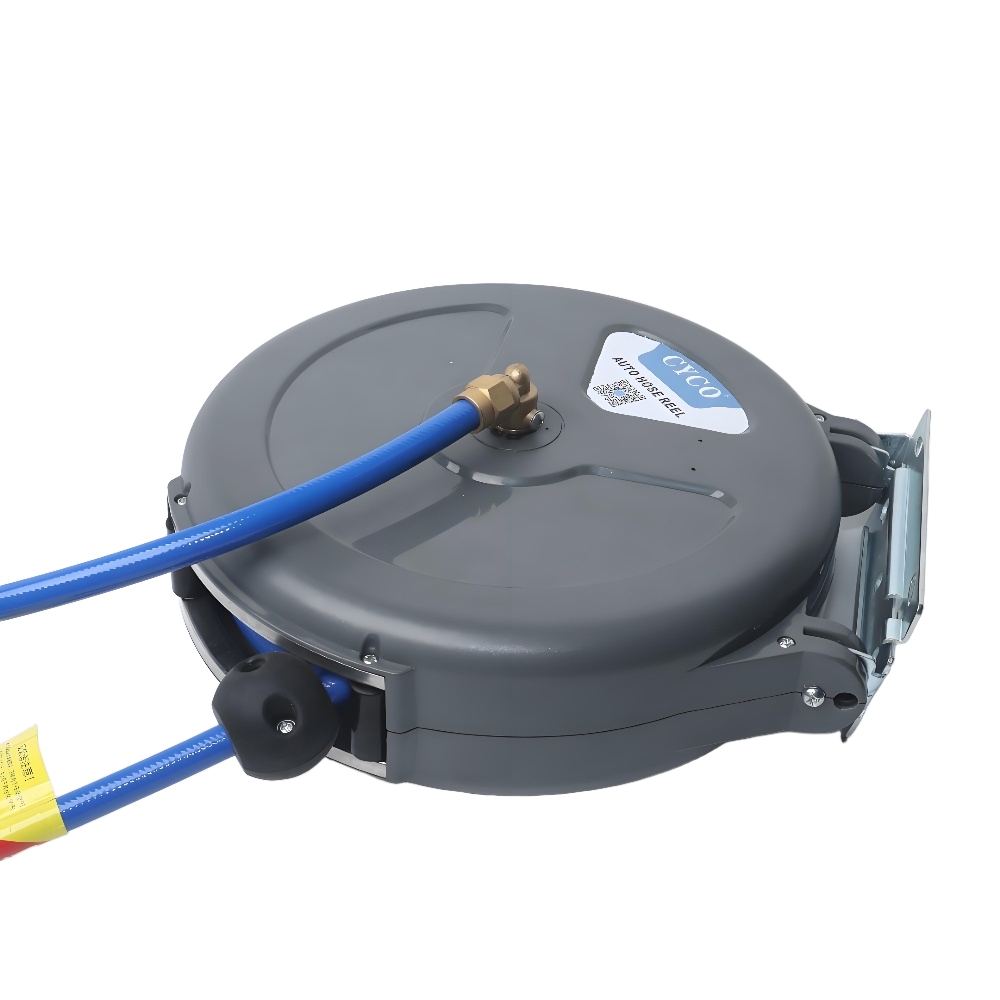

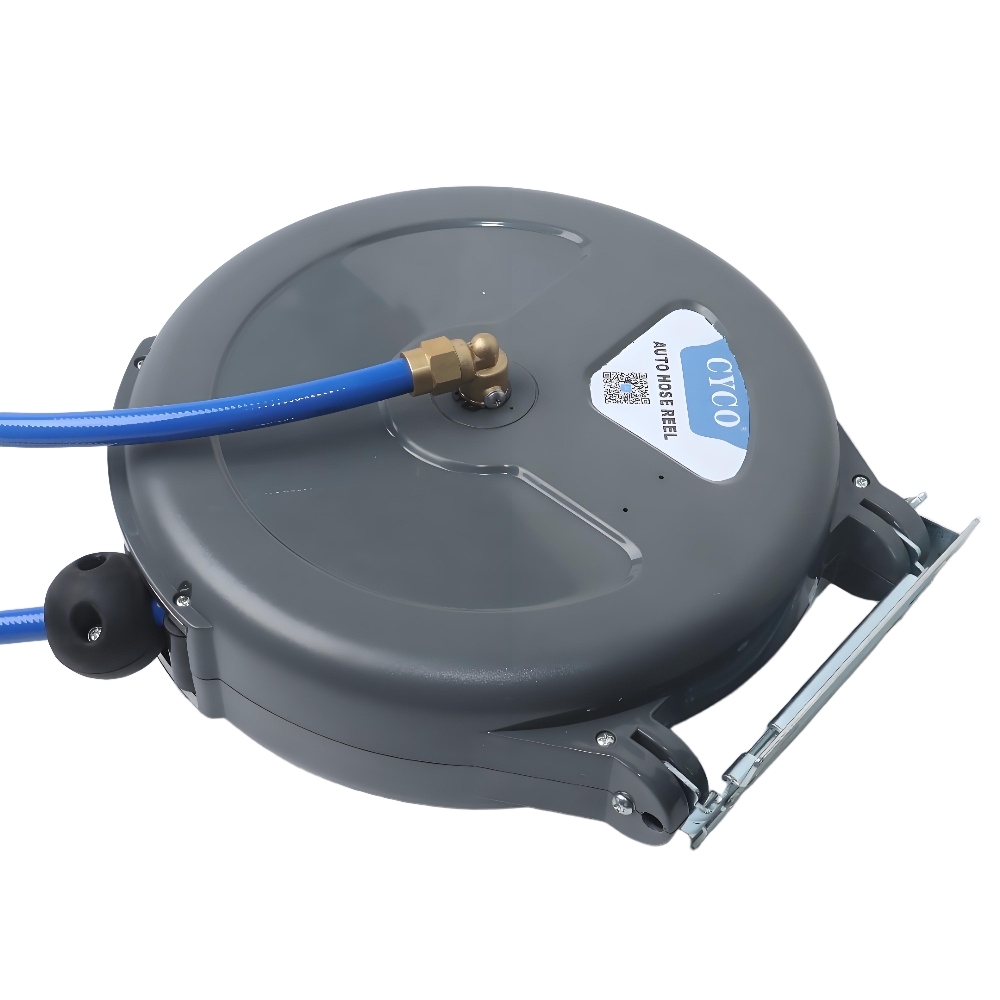

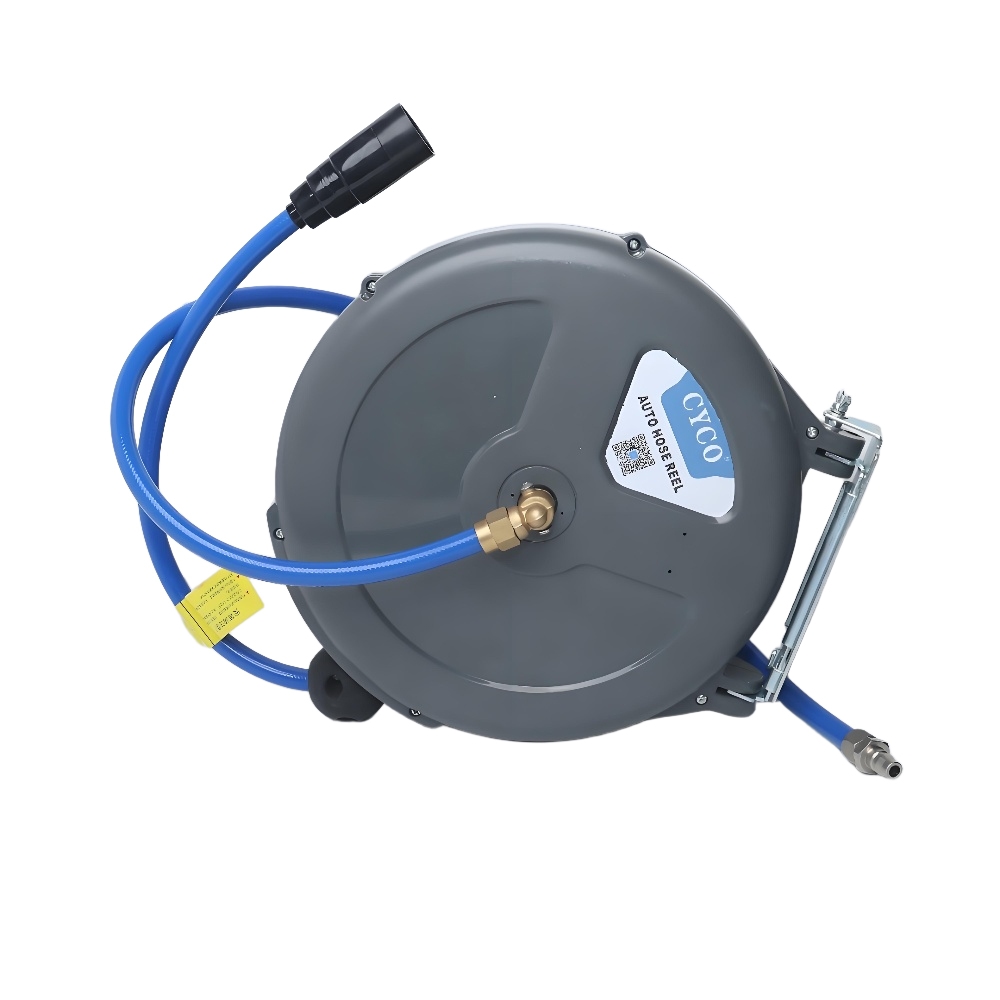

Auto Rewind Air Compressor Hose Reel Model R1015Q-10
SKU: R1015Q-10
Category: Air Hose Reels, Spring-Driven Hose Reels
Overview
The R1015Q-10 Auto Rewind Air Compressor Hose Reel delivers automated hose management for industrial compressed air systems. Engineered with a self-locking, self-winding mechanism, this reel enables one-handed operation—pull to deploy, release to retract automatically. Designed for workshops, garages, and automotive detailing centers, it combines modular construction with aviation-grade components for reliable, tangle-free performance.
Key Features
- Self-Locking & Self-Winding Mechanism – One-handed operation with automatic retraction
- Modular Design – Configurable for single-unit or extended combination use
- Aviation-Grade Spring – Adjustable retraction force with consistent performance after 10,000+ cycles
- Patented Anti-Leak Seals – Multiple sealing technology prevents air loss
- Dual-Layer PU Hose – Anti-freeze, abrasion-resistant, high tensile strength
- Corrosion-Resistant Brass Spindle – Industrial-grade multi-alloy copper construction
- 180° Swivel Bracket – Mobile mounting for flexible workspace coverage
- Dust-Proof Enclosed Shell – Polymer composite design protects internal components
- Self-Locking Connector – High-pressure resistant, zero air leakage
- Double Steel Bearings – Reduced friction and extended service life
Technical Specifications
| Specification | Details |
|---|---|
| Hose Material | Double-layer PU with clamping yarn reinforcement |
| Hose Sizes | 6.5mm × 10mm / 8mm × 12mm / 10mm × 14.5mm |
| Input Pipe Length | 1m |
| Output Pipe Length | 8m, 10m, 12m, 15m, or 20m options |
| Operating Pressure | 1.5 MPa |
| Burst Pressure | 4.5 MPa |
| Conveying Medium | Compressed air |
| Shell Material | ABS polymer composite |
| Spindle Material | Industrial-grade multi-alloy copper |
| Bracket Rotation | 180° swivel |
| Packing Dimensions | 350 × 170 × 400mm |
Performance Advantages
- Modular Flexibility – Combines as single unit or extends with multiple configurations
- Durability – Aviation-grade spring maintains consistent retraction force through extended use cycles
- Wear Resistance – High-abrasion sealing technology and corrosion-resistant spindle ensure long service life
- Precision Engineering – Industrial-grade copper spindle and ratchet mechanism resist deformation and misalignment
- Low Maintenance – Enclosed dust-proof design and double steel bearings minimize friction and debris accumulation
- Reliable Locking – Patented anti-locking design with self-locking joint prevents accidental deployment
- Wide Application Range – 180° mobile bracket accommodates diverse workshop and automotive environments
Construction & Materials
- Shell: ABS polymer—low density, high hardness, heat and corrosion resistant
- Spindle: Industrial multi-alloy copper—wear-resistant, rust-proof
- Bearings: Double steel construction for smooth operation
- Ratchet Seat: High-quality wear-resistant pawl design
- Hose: Double-layer PU with yarn reinforcement for anti-freeze and tensile strength
- Connectors: Steel fast self-locking joints with high-pressure rating
- Spring: Aviation-grade material with adjustable retraction force
Applications
- Industrial workshops and manufacturing facilities
- Automotive repair and detailing centers
- Pneumatic tool operations
- Compressed air supply management in confined spaces
For pricing, bulk orders, OEM/ODM customization, or technical specifications, send an inquiry to our sales team.
