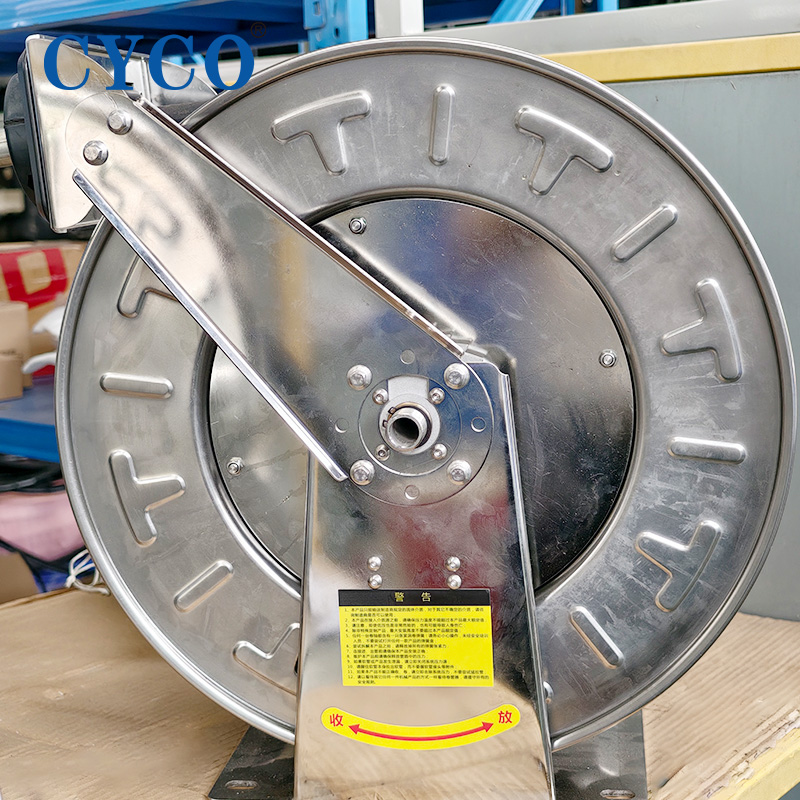

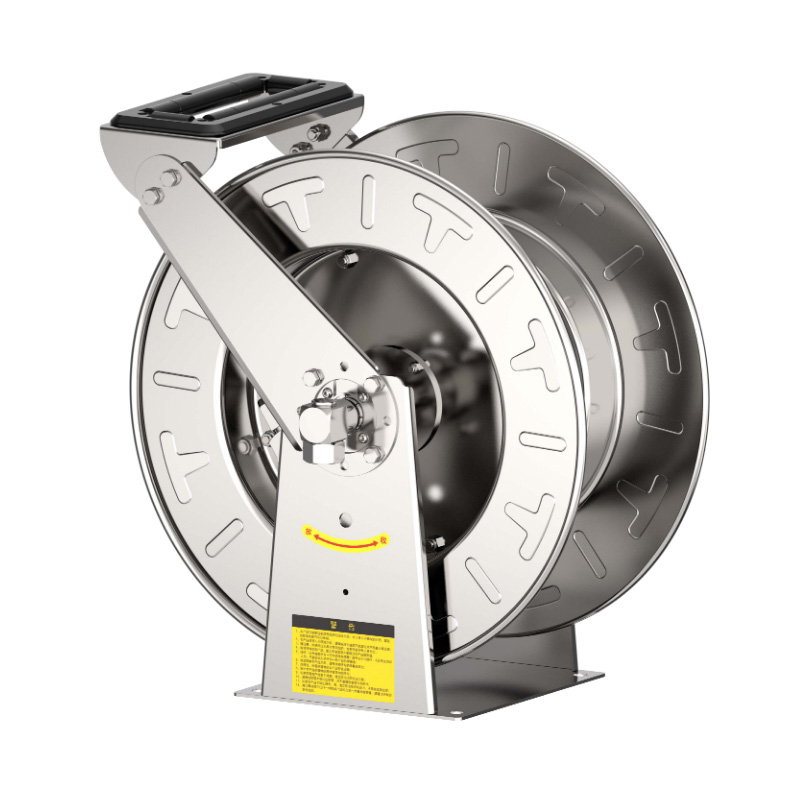

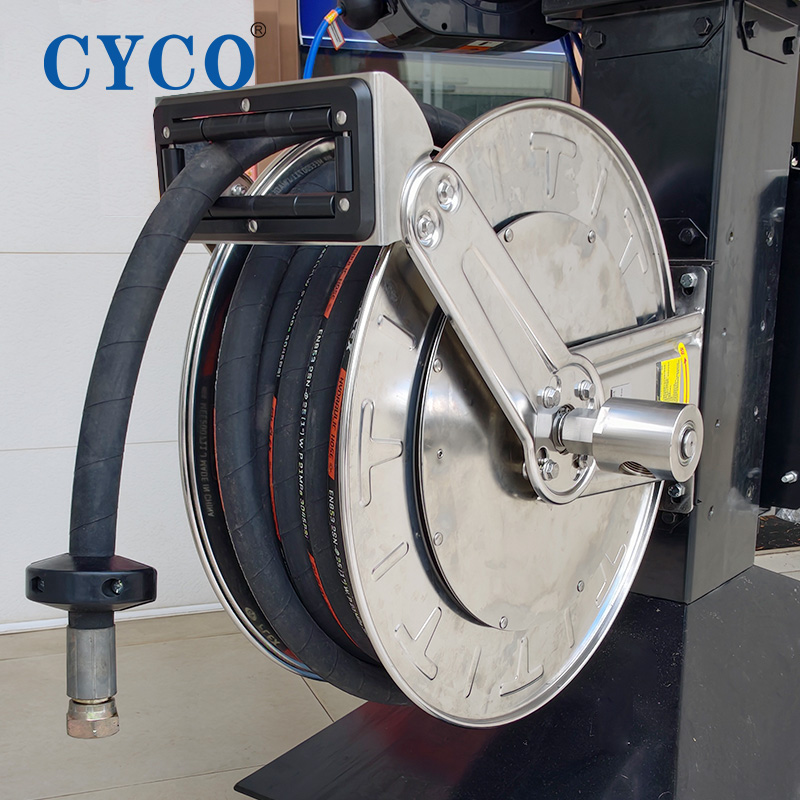

Air/Water/Oil/Grease Hose Reel CY-DS900
SKU: CY-DS900
Categories: Air Hose Reels | Hose Reels | Hydraulic Hose Reels | Oil Hose Reels | Spring-Driven Hose Reels | Water Hose Reels
Overview
The CY-DS900 stainless steel hose reel is engineered for demanding industrial applications requiring corrosion resistance and reliable fluid handling. Manufactured from 304 stainless steel with electrochemical surface treatment, this spring-driven reel delivers consistent performance across food production, chemical transportation, industrial solvent handling, and coastal/offshore environments. Optional 316L construction is available for enhanced corrosion resistance in severe conditions.
Key Features
- Enclosed Drive Spring: Protective mechanism shields against environmental contamination and extends operational life
- Long-Life Drive Springs: Clutch-type spool design virtually eliminates spring damage from reverse winding
- Adjustable Cushion Stop: Enables precise control of rope length held on the reel exterior
- Adjustable Guide Arm: Multiple positioning options for versatile field deployment and configuration
- Corrosion & Dirt Resistance: 304 stainless steel construction with electrochemical surface treatment for superior durability
- Stainless Steel Construction: Ideal for food-grade, chemical, and marine applications
Specifications
| Specification | Value |
|---|---|
| Model | DS900 OLS |
| Weight (without hose) | 17 kg |
| Maximum Pressure | 21 bar |
| Hose Inner Diameter | 19 mm |
| Hose Outer Diameter | 27 mm |
| Hose Outlet (NPT Internal Thread) | 3/4" |
| Reel Import (NPT Internal Thread) | 3/4" |
| Hose Length | 12 m |
| Length | 479 mm |
| Width | 226 mm |
| Height | 498 mm |
| Maximum Temperature | 99°C (low/medium pressure) |
Applications
- Food production and processing facilities
- Industrial cleaning systems
- Chemical transportation and storage
- Solvent handling operations
- Coastal and offshore installations
- Marine environments requiring corrosion resistance

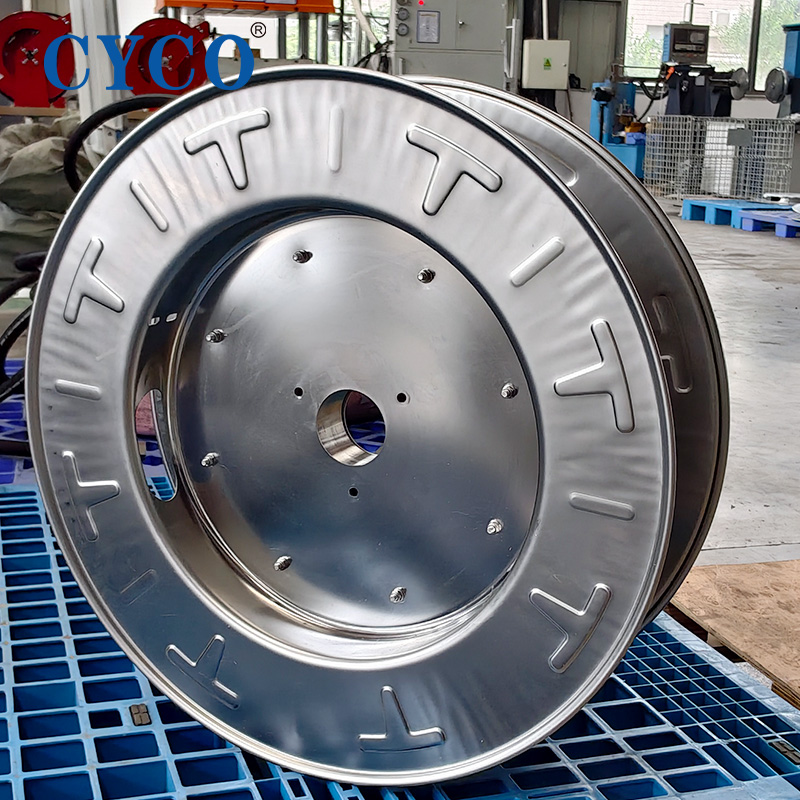

Material & Construction
Manufactured from 304 stainless steel stampings with electrochemical surface treatment. Optional 316L stainless steel available upon request for applications requiring maximum corrosion resistance in highly aggressive environments.
Related Products
- Stainless Steel Spring Driven Hose Reel CY-DS84
- Hose Reel CY-HS18 Series
- Portable Hose Reel Cart
- Hose Reel F584 Series
- Cable Reel CY-L30/L55/L70 Series
Note: This product is supplied without hose. Hose selection and procurement should be coordinated with CYCO based on your specific application requirements.
Send Inquiry for pricing, OEM/ODM customization, bulk orders, or 316L material specifications.
