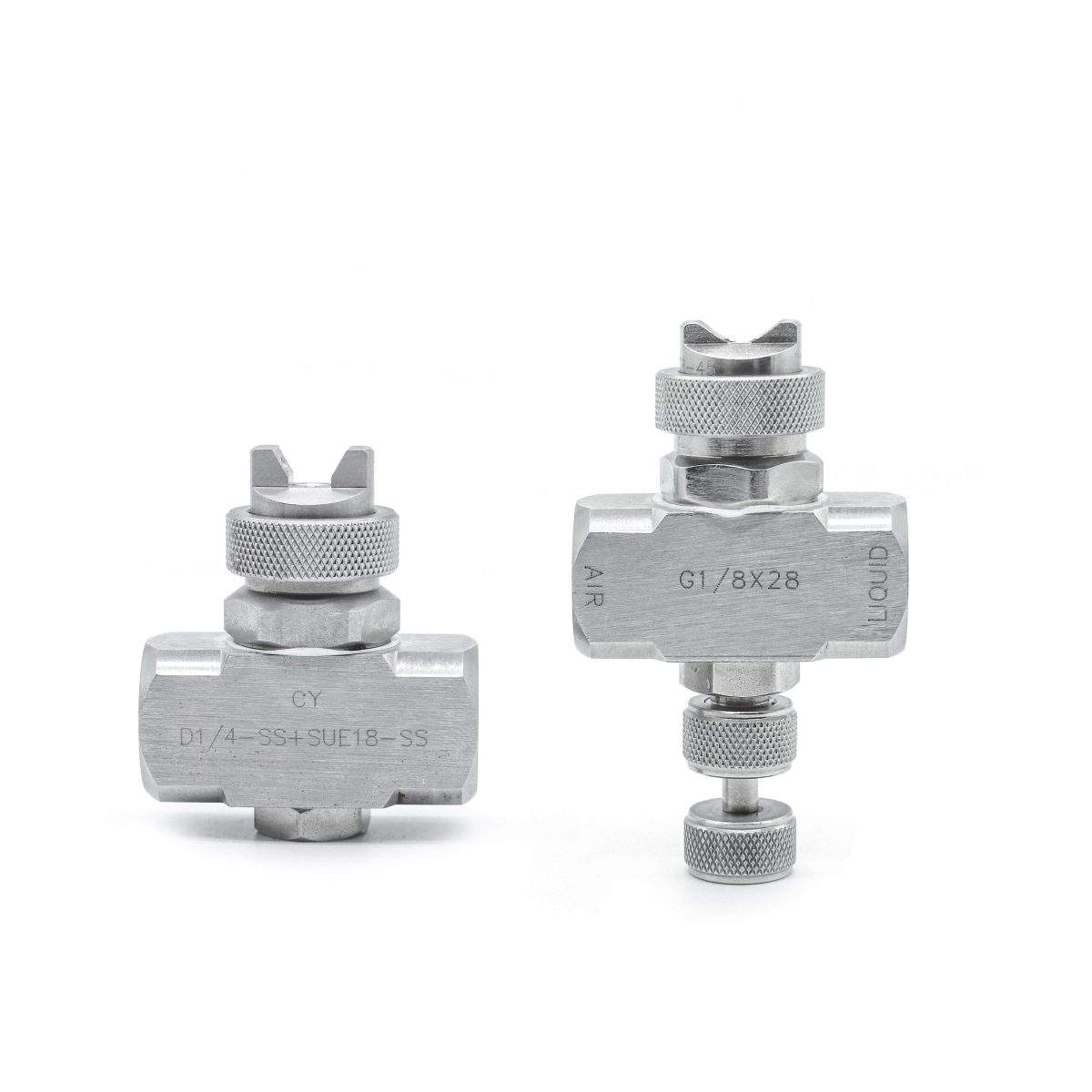

Adjustable Air Atomizing Spray Nozzle
Category: Industrial Spray Nozzles
Manufacturer: CYCO & Changyuan
Overview
The Adjustable Air Atomizing Spray Nozzle features a specialized internal structure that uniformly mixes liquid and gas to produce variable droplet sizes—from ultra-fine mist to larger spray patterns. Engineered for precision moisture control and efficient atomization, this nozzle delivers consistent performance across demanding industrial applications without requiring pressure adjustments.
Key Features
- Variable Droplet Control: Generates droplet sizes from approximately 30 microns to larger spray patterns by adjusting liquid capacity independently of air and hydraulic pressure
- Dual Spray Modes: Interchangeable air cap and liquid cap configuration enables both flat fan and round spray patterns
- Narrow Spray Angle: 12° to 22° spray angle with full cone pattern for targeted application
- Low Flow Operation: Optimized for minimal flow rates with superior moisture distribution
- Flexible Configuration: Multiple inlet joint sizes and changeable components accommodate various system requirements
- Pressure Independence: Maintains spray consistency without modifying air or hydraulic pressure settings
Technical Specifications
| Specification | Details |
|---|---|
| Spray Angle | 12° – 22° |
| Spray Pattern | Flat fan and round (dual mode) |
| Droplet Size | Adjustable from ~30 microns |
| Flow Rate | Low flow with high moisture efficiency |
| Components | Air cap and liquid cap (interchangeable) |
| Inlet Options | Multiple joint sizes available |
Applications
- Cooling and moisturization systems
- Mold lubrication
- Spray injection processes
- Air disinfection systems
- Precision moisture control environments
Design & Performance

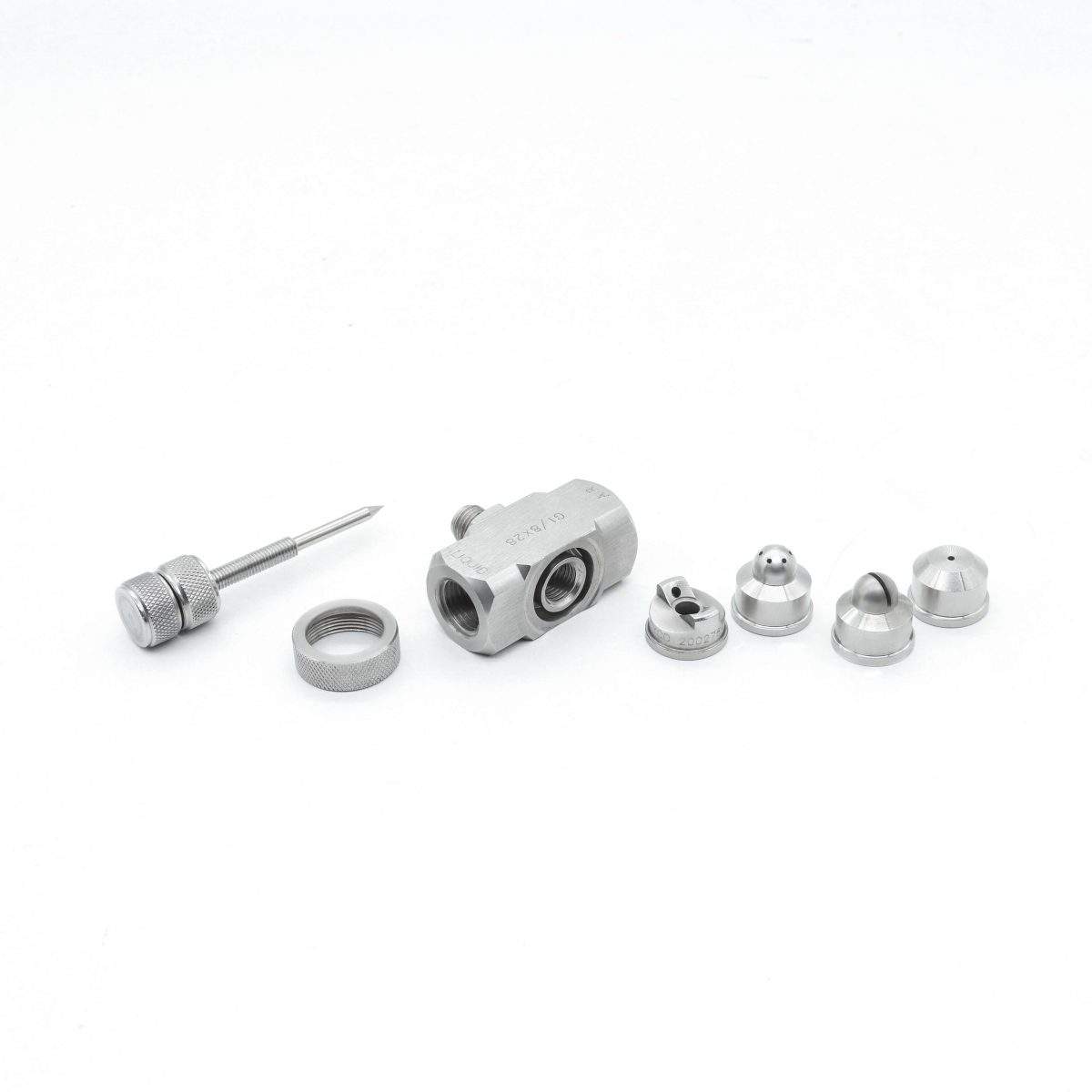

The nozzle's unique internal geometry ensures even liquid-gas mixing, eliminating pressure-dependent spray variations. Each unit combines an air cap and liquid cap assembly, providing operational flexibility without component replacement. The narrow spray angle with full cone coverage makes it ideal for applications requiring precise moisture management and efficient atomization.
Why Choose This Nozzle
- Adaptability: Adjust spray characteristics through liquid capacity control alone
- Efficiency: Delivers superior moisture effect at low flow rates
- Reliability: Consistent performance across varying operational conditions
- Versatility: Dual spray modes and multiple inlet configurations support diverse industrial needs
For technical specifications, pricing, OEM/ODM opportunities, or bulk orders, contact our team at [email protected]. We respond within 24 hours.
