Desulfurization And Denitrification

Application scenarios: desulfurization, denitrification, flue gas cooling, gas cooling and waste gas scrubbing. Efficient treatment to meet environmental emission standards.

View catalog

The Problem & Solution - Desulfurization And Denitrification

Core Challenges

In flue gas desulfurization (FGD) and denitrification systems, inefficient atomization leads to poor gas-liquid contact, reducing pollutant removal efficiency.

Nozzles are frequently exposed to corrosive chemicals, high temperatures, and particulate-laden gas streams, resulting in clogging, erosion, and shortened service life.

Our Solution

Our nozzles are engineered for optimal atomization, ensuring uniform droplet distribution and maximum contact between flue gas and scrubbing liquid for higher SO₂ and NOx removal efficiency.

Built with corrosion-resistant and wear-resistant materials, our solutions ensure long service life, reduced maintenance frequency, and stable operation under harsh environmental conditions.

Applications of Desulfurization And Denitrification

Spiral Nozzles | Spiral Spray Nozzles

Yuechen Precision SPJT-SS-120 spiral nozzle (stainless steel) offers full/hollow cone patterns, 60°-170° spray angles, and flows of 5.5–4140 L/min at 0.7 bar. Ideal for gas cooling, scrubbing, and fire suppression.

Cleaning Equipment Parts Uniform Distribution 120 Degree Wide Angle Full Cone Nozzle

Yuechen Precision BB wide angle full cone nozzle offers uniform spray distribution with a 120° angle for washing, cooling, and dust control. Ideal for industrial cleaning applications.

CYCO stainless round BB 30 degree narrow angle full cone spray nozzle for Gas washing and cooling Metal treating

CYCO BB30° 30° narrow angle full cone spray nozzle in brass or 303SS. Ideal for gas washing, cooling, and metal treating with high impact and uniform distribution.

Max Passage Full Cone Spray Nozzle

CYCO DP Max Passage Full Cone Nozzle (Yuechen Precision) offers up to 8180 L/min flow rate, ideal for marine gas desulfurization. Features stainless steel/brass/plastic options, 60°–120° spray angles, and male/female connections.

Short Type Full Cone Spray Nozzle

Yuechen Precision BBS/BBW series short type full cone nozzle offers compact design, 110-120° spray angle, stainless steel/plastic materials, and high-flow capacity up to 1415 L/min for marine scrubbing.

Narrow-Angle Full Cone Nozzle

Yuechen Precision CYCO BB series narrow-angle full cone nozzles (e.g., BBG-15, BBG-30) offer 15° or 30° spray angles with uniform distribution, removable caps, and high impact efficiency for cleaning, cooling, and washing applications.

Wide Angle Square Full Cone Nozzle

Yuechen Precision 14WSQ wide-angle square full cone nozzle offers uniform spray distribution with 93°–115° spray angle and small-to-medium drops for effective dust control, cooling, and fire suppression.

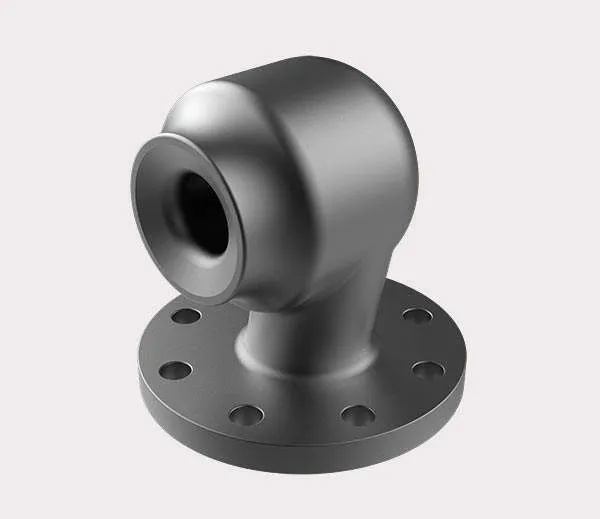

Large Flow Carbide Silicone Hollow Cone Nozzle

LC-200 large flow carbide silicone hollow cone nozzle (70–90° spray angle) offers clog-resistant, uniform spraying for gas scrubbing & cooling. Available in 2–6 inch sizes. Yuechen Precision.

Spiral Nozzles|Spiral Spray Nozzles

SPJT-SS-120-7 spiral nozzle by Yuechen Precision (CYCO): hollow/full cone spray, 60°–170° angle, 5.5–46 L/min flow, stainless steel construction for gas cooling & scrubbing.

Precision Specifications for Flue Gas Treatment Applications

Desulfurization and denitrification processes require precise control of droplet size, spray angle, and flow rate to ensure effective gas-liquid interaction.

Our nozzle specifications are optimized for FGD towers, SCR/SNCR systems, and waste gas scrubbers, ensuring efficient cooling, absorption, and emission compliance.

Working Pressure 1 - 300 PSI

Temperature Range -20°C ~ 400°C

Droplet Size 50 - 500 μm (adjustable)

Spray Angle 30° - 120°

Flow Rate 0.5 - 1000 L/min

Application Medium Limestone slurry, ammonia solution, water, chemical absorbents

Materials Designed for Corrosive & High-Temperature Environments

In desulfurization and denitrification systems, nozzles must withstand highly corrosive media such as acidic gases, alkaline slurries, and high-temperature flue gas.

Choosing the right material is critical to prevent scaling, clogging, and corrosion failure, ensuring long-term stable operation in environmental protection systems.

Stainless Steel 316L

Excellent resistance to acidic and alkaline corrosion, widely used in FGD scrubbers and general flue gas treatment systems.

Silicon Carbide (SiC)

Superior corrosion and wear resistance, ideal for limestone slurry spraying and highly abrasive desulfurization environments.

Ceramic (Alumina/Zirconia)

Outstanding chemical stability and high-temperature resistance, perfect for aggressive gas scrubbing and denitrification processes.

Engineering Plastics (PTFE/PVDF)

Exceptional chemical resistance and anti-clogging properties, suitable for low-pressure chemical absorption and waste gas scrubbing.

Frequently Asked Questions

Which nozzle type is best for desulfurization systems?

Spiral nozzles, hollow cone nozzles, and full cone nozzles are commonly used in FGD systems due to their excellent atomization and anti-clogging performance.

How do you prevent nozzle clogging in slurry applications?

We recommend using large free-passage designs, wear-resistant materials like silicon carbide, and proper filtration systems to minimize clogging risks.

Can your nozzles handle high-temperature flue gas?

Yes, our nozzles are designed to operate in high-temperature environments up to 400°C, depending on the material selection.

Do you provide customized solutions for emission control systems?

Yes, we offer customized nozzle design based on your system parameters, including flow rate, spray angle, droplet size, and chemical compatibility.
