How to Avoid Damaging Expensive Forming Wires Through Nozzle Pressure Control

Quick Answer: Optimal nozzle pressure control for forming wire protection involves maintaining sheet-side high-pressure showers at 120–420 psi (830–2,900 kPa), keeping nozzles 3–8 inches (75–200 mm) from the fabric surface, synchronizing oscillation speed with machine speed, and using precision needle jet nozzles with ceramic or ruby orifice inserts to prevent premature fabric wear and costly unplanned downtime.

Table of Contents

• 1. The Hidden Cost of Poor Nozzle Pressure Management
• 2. Understanding the Science: How High-Pressure Jets Interact with Forming Fabrics
• 3. Critical Parameters for Protecting Your Forming Wire Investment
• 4. Recommended Nozzle Types and Materials for Wire Cleaning Applications
• 5. Step-by-Step Guide to Optimizing Your HP Shower System
• 6. Real-World Application Scenarios: From Packaging to Tissue Grades
• 7. Common Mistakes and How to Avoid Them
• 8. Frequently Asked Questions About Nozzle Pressure and Forming Wire Care
• 9. Conclusion: Small Adjustments, Massive Savings

1. The Hidden Cost of Poor Nozzle Pressure Management

In modern papermaking, the forming wire represents one of the most significant consumable investments on the machine. A single premium polyester forming fabric for a high-speed packaging machine can cost anywhere from $5,000 to $25,000, with expected lifespans ranging from 3 to 12 months depending on grade, speed, and maintenance practices. Yet industry data reveals that up to 40% of premature forming wire failures trace directly back to improperly configured high-pressure cleaning showers—making nozzle pressure control a critical operational priority.

Industry Insight: A documented case study from a European packaging mill revealed that a single malfunctioning nozzle caused fabric lifespans to plummet from 8–10 weeks to just 3–4 weeks. The total financial loss—including fabric costs, machine stops, lost production, and customer complaints—amounted to several hundred thousand euros. The solution? Replacing one nozzle and overhauling the shower pipe at a cost of approximately €500.

The core challenge lies in balancing effective contaminant removal with fabric protection. Paper machine environments subject forming wires to continuous exposure to fibers, stickies, fillers, and chemical residues. Without adequate cleaning, these contaminants clog fabric voids, reduce drainage efficiency, and compromise sheet quality. However, excessive pressure—or improperly positioned jets—can cause fibrillation, compaction of dewatering channels, and accelerated wear that dramatically shortens fabric life.

The key pain points mills face include:

• Nozzle clogging leading to uneven spray distribution and streaked fabric wear patterns
• Inconsistent pressure causing localized over-cleaning or insufficient contaminant removal
• Improper spray distance creating turbulent jet breakup that "hammers" the fabric surface
• Oscillation system malfunctions producing gaps or overlaps in cleaning coverage
• Material incompatibility resulting in rapid nozzle wear and degraded spray patterns

Analysis shows that mills implementing systematic HP shower optimization programs consistently report 15–30% extension in forming fabric life, alongside measurable improvements in cross-direction moisture profiles and reduced paper break frequency. For operations running 24/7, these improvements translate directly into six-figure annual savings.

2. Understanding the Science: How High-Pressure Jets Interact with Forming Fabrics

To master nozzle pressure control for forming wire protection, papermakers must first understand the fluid dynamics at play. When a high-pressure needle jet exits the nozzle orifice, it travels as a coherent, laminar stream. As this jet progresses through the air, it gradually entrains surrounding air, begins to break apart, and transitions from laminar to turbulent flow. The distance at which this breakup occurs is critical—and it is precisely this transition zone that carries the greatest potential for fabric damage.

Technical Note: Research indicates that depending on operating pressure and nozzle quality, jet breakup typically begins at a distance of 200–250 mm from the orifice. The resulting "scrubbing effect" of entrained air and water droplets is highly effective at loosening stubborn contaminants—but it is also the condition most likely to damage delicate fabric structures. This is why leading suppliers universally recommend maintaining a nozzle-to-fabric distance of no more than 150 mm whenever possible.

The forming fabric itself is a complex engineered structure. Modern polyester forming fabrics feature multi-layer designs with precisely calculated void volumes that facilitate water removal while supporting fiber retention. When a high-energy water jet strikes this structure:

• Laminar jet impact (close range, 75–150 mm): Produces focused penetration that flushes contaminants from fabric voids with minimal surface damage risk
• Transitional zone impact (medium range, 150–200 mm): Creates the scrubbing effect that can effectively remove stickies but increases risk of yarn fibrillation
• Turbulent zone impact (long range, 200+ mm): Results in hammering action that compacts fabric structure, reduces caliper, and causes premature failure

Expert Tip: The relationship between pressure and distance is not linear. Trials and decades of mill practice have demonstrated that if jet pressure does not exceed 30 bar (3,000 kPa), the risk of damaging the fabric can be effectively neglected. Pressures up to 40 bar (4,000 kPa) take longer to damage a fabric than the typical lifespan under normal wear conditions. However, exceeding these thresholds without compensating through reduced distance or adjusted angle rapidly accelerates degradation.

Understanding these interactions forms the foundation for all subsequent optimization decisions. Every parameter—from pressure to distance to angle to oscillation—must be evaluated in the context of your specific fabric design, machine speed, and contaminant loading.

3. Critical Parameters for Protecting Your Forming Wire Investment

Achieving optimal cleaning performance while safeguarding your forming wire requires precise control over multiple interdependent variables. The following table summarizes the recommended operating parameters based on industry best practices and manufacturer specifications:

Key considerations for each parameter:

Pressure management is the most critical factor under direct operator control. The golden rule remains: use the lowest pressure that achieves acceptable cleaning results. Packaging-grade fabrics with coarser designs can typically tolerate pressures at the higher end of the range (up to 420 psi / 2,900 kPa). However, ultra-fine tissue fabrics are highly susceptible to damage, especially on the wear side where the knuckle wear pad is more exposed. For these applications, pressures above 200 psi (1,400 kPa) should be approached with caution.

Distance optimization requires understanding your cleaning objective. Sheet-side showers primarily remove surface contaminants and benefit from the two-phase scrubbing effect achieved at 6–8 inches (150–200 mm). Wear-side showers must penetrate internal voids to flush embedded debris, requiring laminar flow conditions only achievable at closer distances of 3–4 inches (75–100 mm).

Oscillation synchronization is frequently overlooked but vitally important. An oscillation speed that is too fast leaves gaps between cleaned strips, allowing contaminant buildup. Speed that is too slow creates excessive overlap, subjecting some areas to double the intended jet impact and accelerating localized wear. Where possible, automatic synchronization with machine speed should be implemented; otherwise, calculate for the slowest operating speed to ensure complete coverage.

4. Recommended Nozzle Types and Materials for Wire Cleaning Applications

Selecting the appropriate nozzle type and material is as important as setting the correct pressure. In the Paper Making Industry, several nozzle configurations have proven effective for forming wire cleaning, each with distinct advantages depending on application requirements.

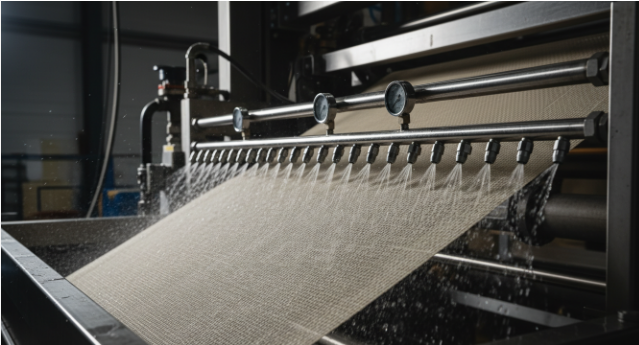

High-Pressure Needle Spray Nozzles

The industry standard for forming fabric cleaning, needle spray nozzles produce a solid, coherent stream capable of penetrating fabric voids with precision. These nozzles are characterized by:

• Concentrated, high-impact jet pattern optimized for contaminant removal
• Multiple orifice sizes (typically 0.8–1.75 mm) for fine-tuning cleaning intensity
• Operating pressure ranges from 1 bar up to 150 bar depending on design
• Compatibility with oscillating shower systems for uniform coverage

Precision-manufactured needle spray nozzles with ceramic or ruby orifice inserts offer exceptional wear resistance and maintain consistent spray patterns over extended service periods. The CY27149 high-pressure needle shower nozzle exemplifies this category, featuring multiple orifice sizes and gasket options to match specific application requirements.

Disc Flat Fan Nozzles

Flat fan nozzles serve a complementary role in forming section cleaning, particularly for brush-type shower applications and surface washing. The CCTC-2510 disc flat fan nozzle, for instance, provides a 25° spray angle with stainless steel construction, delivering reliable performance for applications requiring wider spray distribution than needle jets provide.

Ceramic Solid Stream Nozzles

For extreme high-pressure applications up to 138 bar, ceramic solid stream nozzles combine brass bodies with precision ceramic cores. These nozzles excel in demanding cleaning environments where conventional materials would degrade rapidly. The ceramic orifice maintains dimensional stability far longer than stainless steel alternatives, ensuring consistent pressure and flow characteristics throughout the maintenance cycle.

Material Selection Guide:

Practical Recommendation: For forming wire cleaning applications, specify tungsten carbide or ceramic orifice inserts as a minimum. While stainless steel nozzles offer lower initial cost, their accelerated wear in high-pressure paper machine environments leads to degraded spray patterns within weeks rather than months. The resulting inconsistency in cleaning action—and increased risk of fabric damage from worn nozzles—rapidly negates any upfront savings.

5. Step-by-Step Guide to Optimizing Your HP Shower System

Implementing an optimized nozzle pressure control strategy requires methodical execution. Follow these evidence-based steps to protect your forming wire investment while maximizing cleaning effectiveness:

Step 1: Conduct a Baseline Assessment

Begin with a comprehensive audit of your current shower system configuration. Document:

• Current operating pressure at each shower (verify with calibrated gauge)
• Nozzle-to-fabric distances measured with a rigid ruler
• Nozzle orifice sizes and their condition (use bore gauge or optical comparator)
• Oscillation stroke length and speed settings
• Fabric type, mesh count, and current running hours
• Recent fabric life history and reason for previous changes

Step 2: Calculate Optimal Oscillation Parameters

Use the industry-standard formula to determine correct oscillation speed:

Formula: Oscillation Speed (mm/s) = (Fabric Speed [m/min] × Jet Diameter [mm]) ÷ (Fabric Length [m] × 60)

For example, a machine running at 1,500 m/min with a 1.0 mm jet diameter and 30-meter fabric length requires: (1,500 × 1.0) ÷ (30 × 60) = 0.83 mm/s

Program this speed into your shower controller, or if manual adjustment is necessary, set for your lowest production speed to ensure complete coverage.

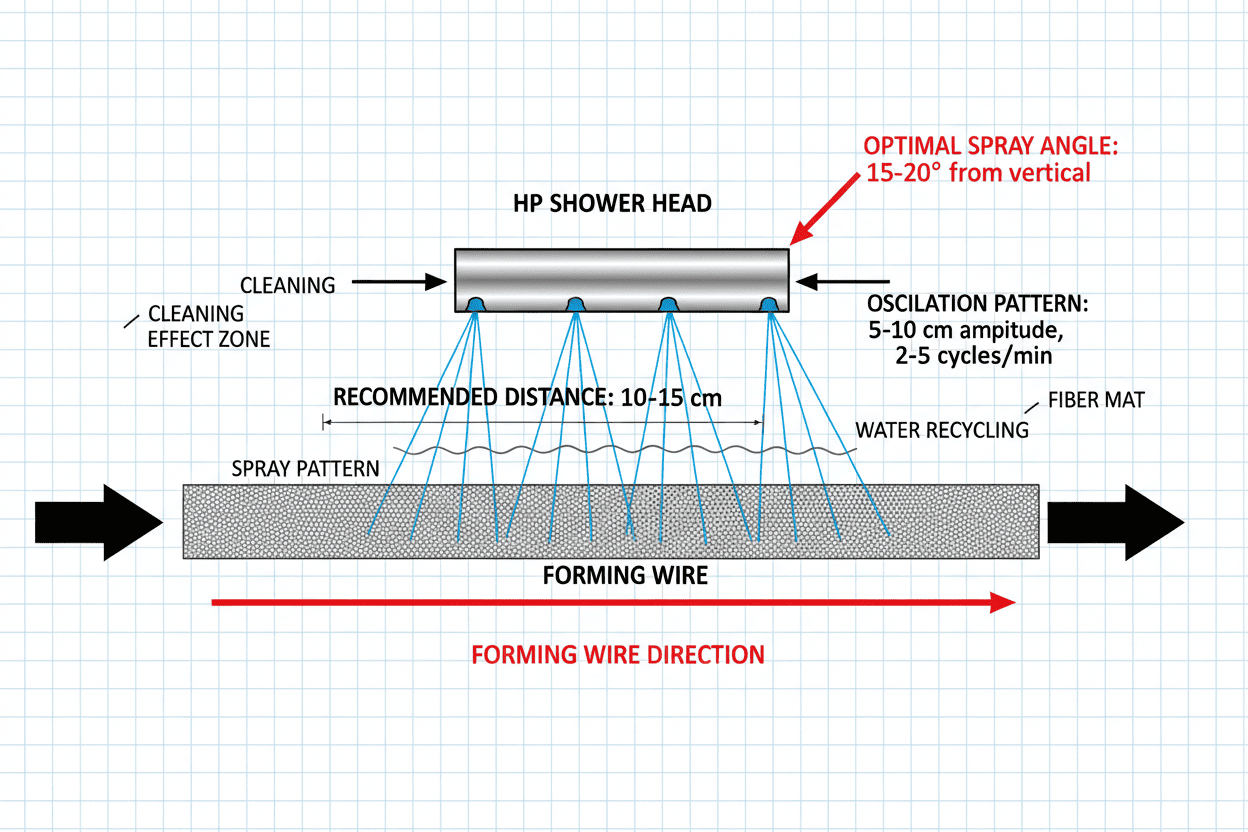

Step 3: Optimize Spray Distance

Adjust nozzle-to-fabric distance based on your cleaning objective:

• For surface contaminant removal (sheet side): Position 6–8 inches (150–200 mm) from fabric
• For internal void flushing (wear side): Position 3–4 inches (75–100 mm) from fabric
• For fine tissue fabrics: Never exceed 4 inches (100 mm) regardless of side

Measure distance from nozzle tip to fabric surface at multiple points across the full machine width to ensure uniformity.

Step 4: Set and Lock Operating Pressure

Start at the lowest recommended pressure for your fabric type. Gradually increase in 10-psi increments until acceptable cleaning performance is achieved. Once optimized:

• Lock pressure regulator to prevent unauthorized adjustment
• Install pressure gauge with easy visibility for operators
• Set alarm limits for pressure deviation (±5% of setpoint)
• Record final setting in machine logbook

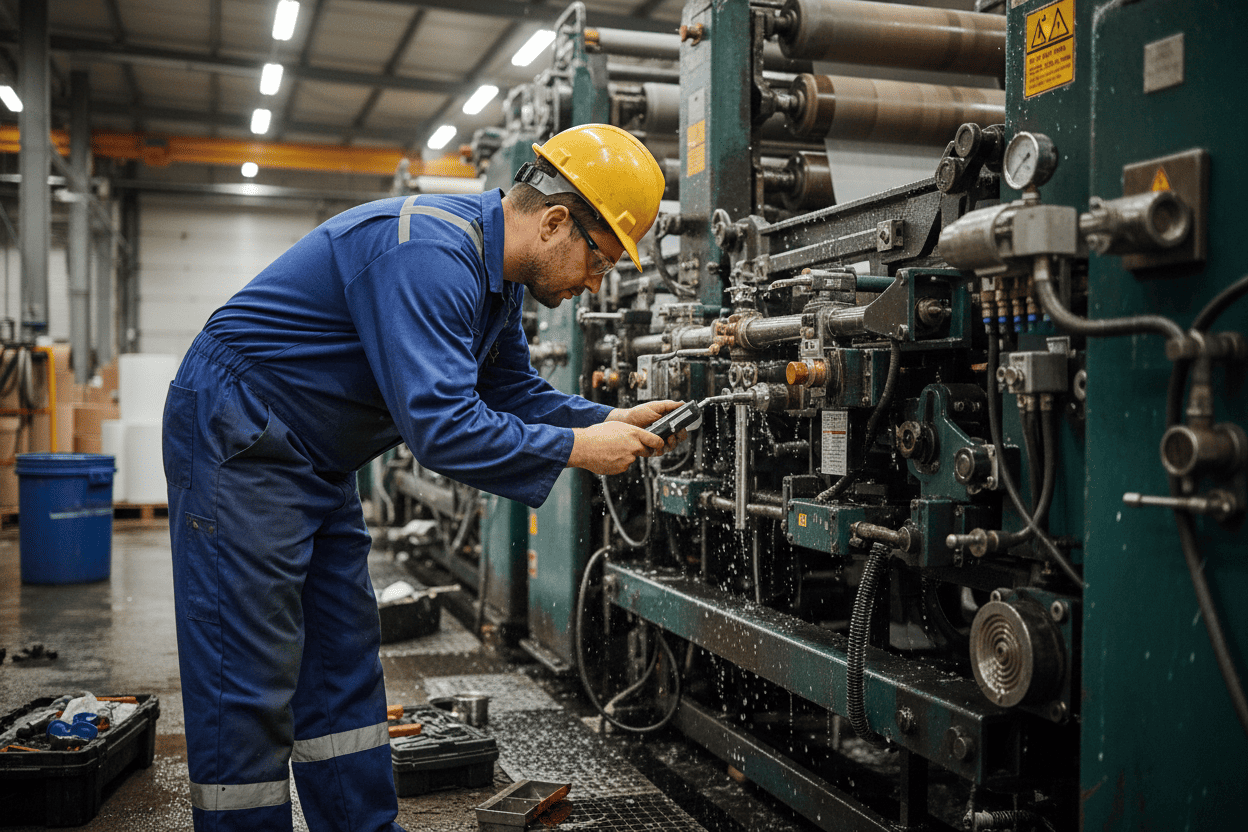

Step 5: Verify Spray Pattern Quality

With the machine running, use a variable-speed strobe light to examine spray patterns:

• Look for coherent, uniform jets from all nozzles
• Identify any jets showing premature breakup, deflection, or fanning
• Mark suspect nozzles for replacement during next maintenance window

Step 6: Implement Preventive Maintenance Schedule

Establish and adhere to a disciplined maintenance routine:

• Weekly: Visual spray pattern check with strobe light; verify pressure readings
• Monthly: Measure nozzle orifice diameters; inspect oscillation mechanism
• Quarterly: Full shower pipe removal and internal cleaning; replace worn nozzles
• Annually: Complete system overhaul including seals, bearings, and drive components

Step 7: Monitor and Adjust Based on Results

Track key performance indicators over at least two full fabric lifecycles:

• Fabric life in days or operating hours
• Cross-direction moisture profile variation
• Paper break frequency attributed to forming section
• Vacuum levels at suction boxes (indicator of fabric condition)

Pro Tip: The most successful mills treat their HP shower systems as precision instruments requiring the same care as any other critical machine component. A small investment in systematic monitoring and maintenance routinely yields returns exceeding 10:1 through extended fabric life alone.

6. Real-World Application Scenarios: From Packaging to Tissue Grades

The principles of nozzle pressure control translate differently across paper grades and machine configurations. The following scenarios illustrate how mills have successfully applied these strategies in the Paper Making Industry.

Scenario 1: High-Speed Packaging Machine (Forming Section)

A European linerboard mill operating at 1,200 m/min experienced persistent cross-direction profile problems and fabric life averaging only 5 weeks. Investigation revealed HP showers running at 480 psi with nozzles positioned 12 inches from the fabric—well into the turbulent breakup zone.

After systematic optimization:

• Pressure reduced to 350 psi
• Distance corrected to 6 inches (150 mm)
• Oscillation speed synchronized to machine drive
• Nozzles upgraded to ceramic orifice type

Results: Fabric life extended to 10 weeks; moisture profile variation reduced by 40%; estimated annual savings of €180,000 in fabric costs alone.

Scenario 2: Tissue Machine Crescent Former

A North American tissue producer struggled with premature fabric failure on a crescent former running at 1,800 m/min. The ultra-fine triple-layer forming fabric required gentler treatment than the mill's standard practices provided.

Optimization measures implemented:

• Sheet-side pressure reduced from 280 psi to 180 psi
• Wear-side pressure limited to 150 psi maximum
• Distance reduced to 3 inches (75 mm) on both sides
• Nozzle orifice reduced from 1.2 mm to 0.8 mm for finer impact pattern

Results: Fabric life increased from 35 days to 62 days; sheet quality improved with fewer holes and breaks; vacuum energy consumption reduced by 8% due to better-maintained fabric permeability.

Scenario 3: Recycled Containerboard with High Contaminant Loading

A mill using 100% recycled furnish faced severe stickies and pitch buildup on forming fabrics, previously addressed by progressively increasing shower pressure. This approach eventually caused catastrophic fabric damage requiring emergency changes every 3 weeks.

Instead of simply increasing pressure, the mill implemented a comprehensive strategy:

• Installed traversing head shower technology for zone-specific cleaning
• Reduced standard HP shower pressure to 250 psi
• Added auxiliary mist extraction system to prevent redeposition
• Optimized nozzle spacing from 4 inches to 3 inches for better coverage

Results: Fabric life stabilized at 8+ weeks; machine breaks due to fabric-related issues eliminated; overall water consumption for cleaning reduced by 35%.

Case Study Insight: Each of these scenarios demonstrates that forming wire protection through nozzle pressure control is not about finding a single "correct" setting. Rather, it requires understanding the interaction between your specific fabric construction, contaminant profile, machine speed, and cleaning objectives—then systematically optimizing all variables in concert.

7. Common Mistakes and How to Avoid Them

Even experienced papermakers occasionally fall into practices that compromise forming wire life. Awareness of these common pitfalls is the first step toward avoidance:

Mistake 1: Using Pressure as the Primary Cleaning Control Variable

When cleaning performance degrades, the instinctive response is often to increase pressure. This approach is counterproductive beyond certain thresholds. Data shows that excessive pressure causes more damage than it solves, compacting fabric structure and reducing permeability.

Solution: Optimize distance, angle, and oscillation parameters before considering pressure increases. If pressure must be raised, stay within material-specific limits.

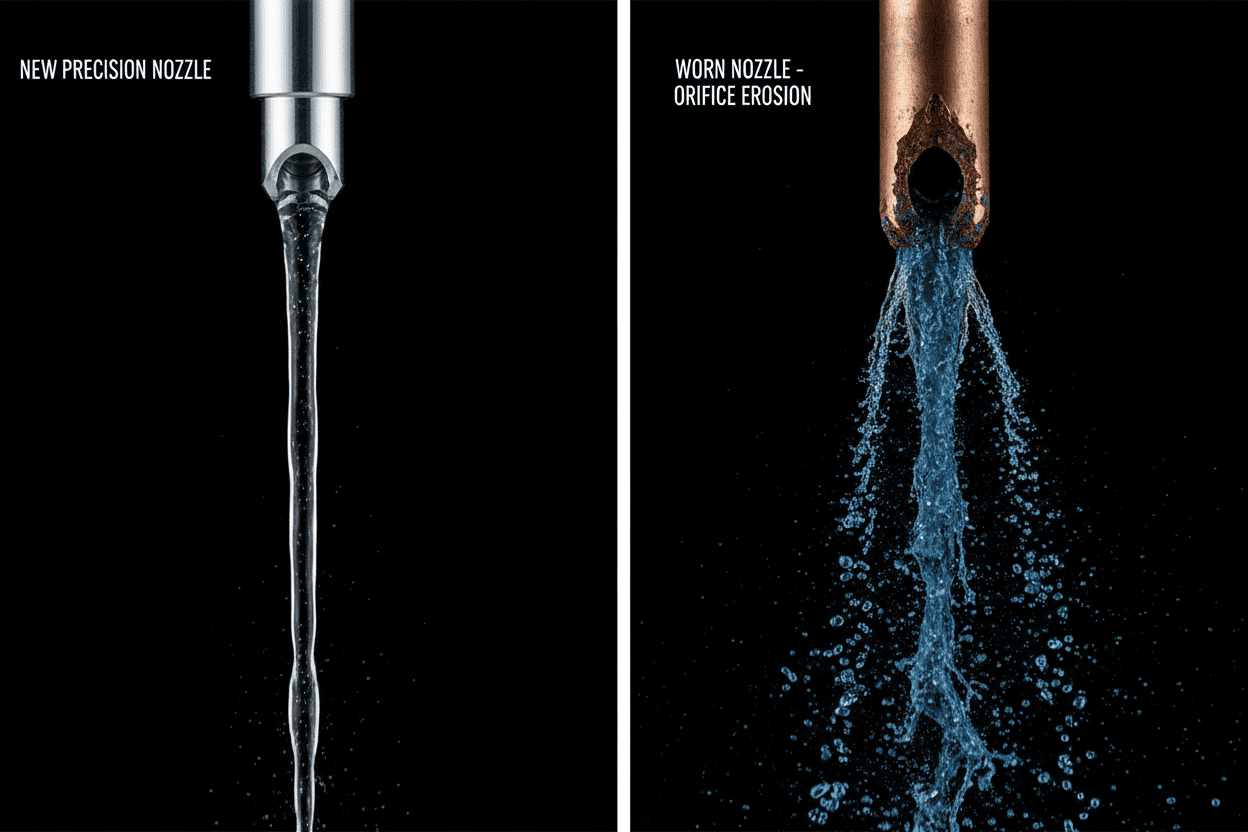

Mistake 2: Ignoring Nozzle Wear

Worn nozzles produce turbulent, irregular spray patterns that distribute energy unevenly across the fabric. A nozzle with 15% orifice enlargement may still appear to function while actually creating localized damage zones.

Solution: Establish orifice measurement schedules and replace nozzles at predetermined wear limits—typically when diameter increases by 10% from specification.

Mistake 3: Inconsistent Oscillation Performance

Oscillation systems with dwell time at stroke reversal points, uneven speed profiles, or mechanical backlash create visible streaks on fabrics. These manifest as light (over-cleaned) or dark (under-cleaned) machine-direction stripes at spacing corresponding to nozzle pitch.

Solution: Regularly inspect mechanical components; program oscillation drives for continuous motion without dwell; verify stroke length matches nozzle spacing multiples.

Mistake 4: One-Size-Fits-All Settings

Applying the same pressure and configuration across different fabric designs ignores fundamental differences in fabric structure. A triple-layer tissue fabric and a single-layer packaging fabric have vastly different tolerances.

Solution: Develop grade-specific shower recipes and enforce change procedures during fabric changes.

Mistake 5: Neglecting Shower Pipe Internal Condition

Internal corrosion, scale buildup, or debris in shower pipes can partially block nozzles or create flow imbalances that affect spray uniformity. External appearance of nozzles may not reveal these hidden problems.

Solution: Include shower pipe internal cleaning and inspection in quarterly maintenance schedules.

8. Frequently Asked Questions About Nozzle Pressure and Forming Wire Care

What is the maximum safe pressure for cleaning forming fabrics with high-pressure showers?

For most packaging and printing grade fabrics, sheet-side pressures up to 420 psi (2,900 kPa) are generally safe when proper distance and angle are maintained. However, tissue and specialty grades with fine designs typically require lower pressures—often 200 psi (1,400 kPa) or less. The wear side of any fabric is more vulnerable due to exposed knuckles, so inside showers should rarely exceed 250 psi (1,700 kPa). The overriding principle is to use the minimum pressure achieving acceptable cleaning results.

How often should high-pressure shower nozzles be replaced?

Replacement intervals depend on operating pressure, water quality, and nozzle material. Stainless steel nozzles in high-pressure service may require replacement every 4–8 weeks. Tungsten carbide or ceramic inserts typically last 3–6 months. Ruby and sapphire orifices can extend service life to 6–12 months under favorable conditions. Regardless of material, monthly orifice diameter measurements should guide replacement decisions rather than calendar schedules alone.

What are the warning signs that nozzle pressure is too high?

Visual and operational indicators of excessive pressure include:

• Regular zonal stripes visible across the fabric width (machine-direction lines)
• Progressive reduction in fabric caliper thickness
• Increased vacuum requirements at suction boxes
• Fibrillated or fuzzy yarn appearance on fabric surface
• Cross-direction moisture profile deterioration
• Fabric life consistently below supplier expectations
• Audible "hammering" sound from shower impact zone

If two or more of these symptoms appear simultaneously, immediate pressure reduction and system inspection are warranted.

Can oscillation speed really affect fabric life that significantly?

Yes. Improper oscillation is one of the most underappreciated causes of premature fabric failure. Speed that is too fast leaves gaps where contaminants accumulate, eventually causing permanent fabric clogging. Speed that is too slow creates overlap zones receiving double jet impact, resulting in accelerated wear patterns. The formula for calculating optimal oscillation speed—(Fabric Speed × Jet Diameter) ÷ (Fabric Length × 60)—should be applied rigorously, with automatic machine speed synchronization implemented wherever technically feasible.

Are ceramic nozzles worth the additional cost compared to standard stainless steel?

Analysis consistently shows that ceramic and premium material nozzles deliver positive return on investment in paper machine applications. While stainless steel nozzles cost less initially, their accelerated wear in high-pressure service leads to:

• Degraded spray patterns that damage fabric structure
• More frequent replacement labor and downtime
• Inconsistent cleaning effectiveness requiring compensatory pressure increases
• Shorter overall fabric life from uneven wear patterns

The typical payback period for upgrading to ceramic or ruby nozzles ranges from 4 to 12 weeks through extended fabric life alone, excluding additional benefits from improved paper quality and reduced maintenance.

9. Conclusion: Small Adjustments, Massive Savings

The evidence is unequivocal: proper nozzle pressure control is among the highest-leverage activities available for protecting expensive forming wire investments and optimizing paper machine performance. The adjustments required are technically straightforward—pressure settings, spray distances, oscillation speeds, and nozzle specifications that are well-documented and readily implemented. Yet the financial impact of these optimizations is disproportionately large.

Mills that approach HP shower management as a precision discipline rather than an afterthought routinely achieve:

• 20–50% extension in forming fabric service life
• Measurable improvement in cross-direction moisture profiles and sheet uniformity
• Reduced paper breaks originating from forming section issues
• Lower total water consumption through more efficient cleaning
• Decreased unplanned downtime for emergency fabric changes

The alternative—neglecting these parameters—carries substantial risk. A single malfunctioning nozzle or incorrectly set pressure regulator can transform a precision cleaning system into a fabric destruction mechanism, converting thousands of dollars in forming wire investment into scrap within days rather than months.

Final Thought: In papermaking, as in many precision manufacturing processes, the margin between optimal performance and costly failure is often measured in millimeters of spray distance, pounds per square inch of pressure, or fractions of a millimeter in orifice diameter. The operators and engineers who master these variables—and who treat their high-pressure shower systems with the same care they apply to any other critical machine component—will continue to enjoy substantial competitive advantages through lower costs, higher quality, and more reliable production.

For mills seeking to upgrade their shower systems or develop grade-specific cleaning protocols, consulting with nozzle specialists who understand the unique demands of paper machine environments is a valuable next step. Precision nozzle technology, properly applied, transforms what can be a source of chronic problems into a reliable foundation for consistent, high-quality papermaking.
